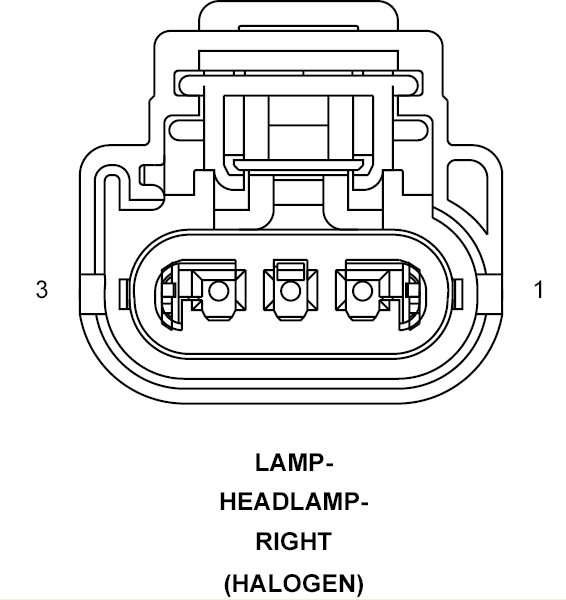

Right Headlamp Lamp (Halogen) Connector End View
Right Headlamp Lamp (Halogen) Connector End View
LAMP-HEADLAMP-RIGHT - 3-WAY (HALOGEN)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
L44 16TN/WT
RIGHT LOW BEAM LAMP DRIVER
2
Z344 16BK/TN
GROUND
3
L34 16WT/GY
RIGHT HIGH BEAM LAMP DRIVER
Courtesy of CHRYSLER CORP.
