Home >> Chrysler >> 2008 >> Pacifica LX, 3.8 L >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0643 To P1628 >> P0645-A/C Control Circuit-Open >> Circuit Schematic

Circuit Schematic

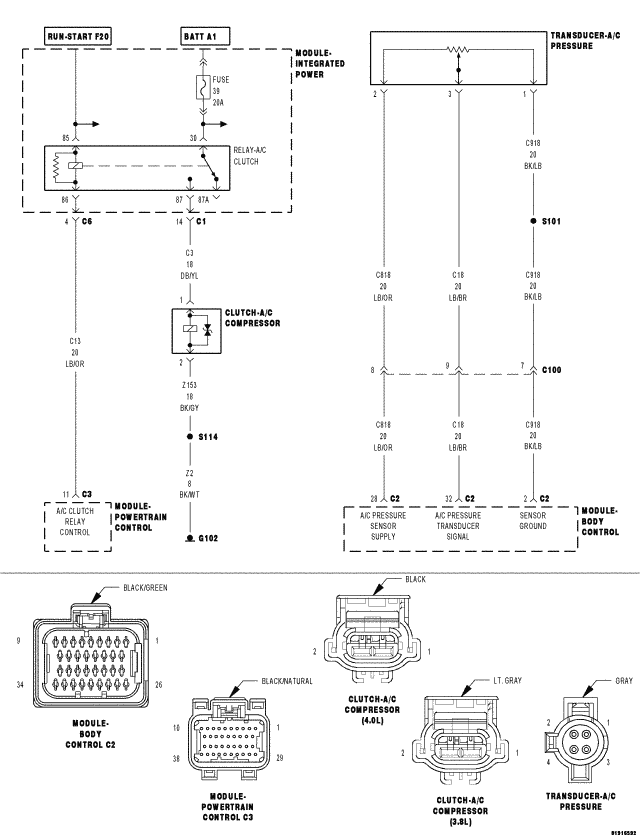

Fig 1: A/C Pressure Sensor Circuit Schematic
GC0049608Courtesy of CHRYSLER LLC
