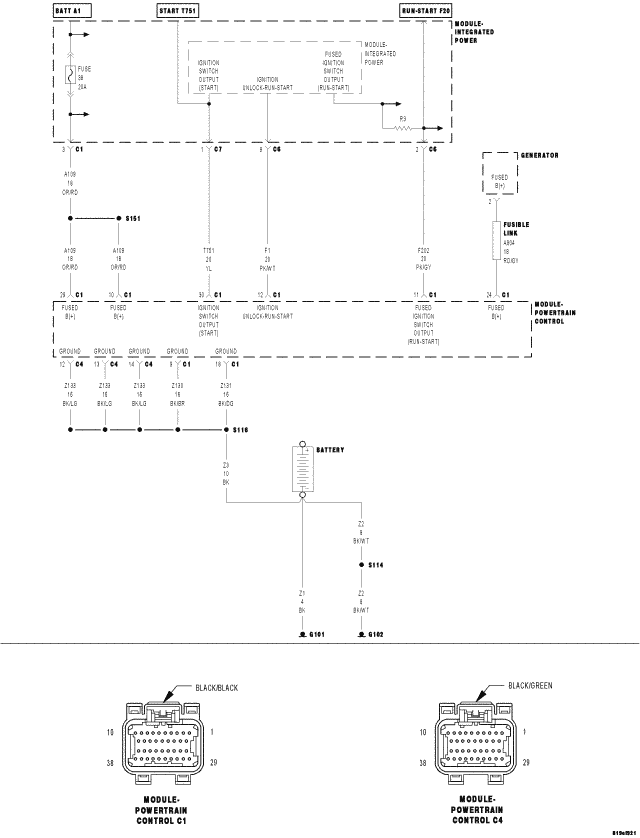

Home >> Chrysler >> 2008 >> Pacifica LX, 3.8 L >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0573 To P0642 >> P0602-Control Module Programming Error / Not Programmed >> Circuit Schematic
