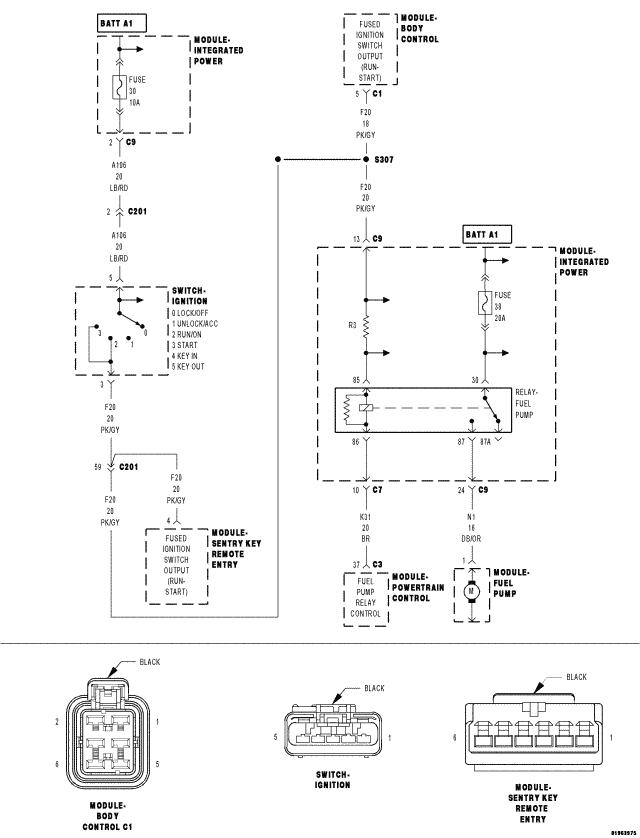

Home >> Chrysler >> 2008 >> Pacifica LX, 3.8 L >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition Control - Electrical Diagnostics >> Ignition Control-Electrical Diagnostics >> DTC Troubleshooting >> Ignition Run/Start Input Mismatch-IPM >> Circuit Schematic
