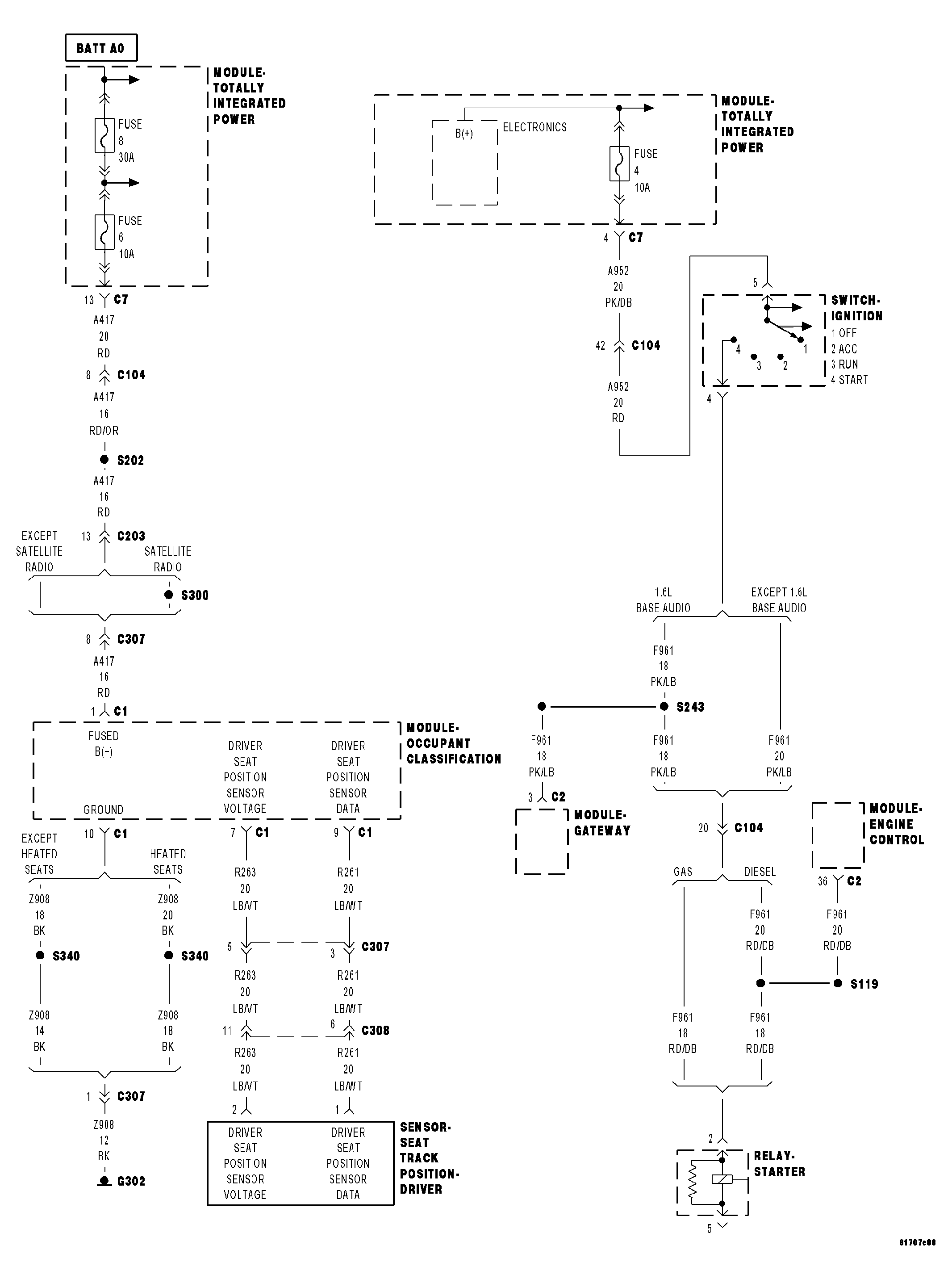

Home >> Chrysler >> 2008 >> PT Cruiser Base, 2D Convertible, 2.4 X, Automatic >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> DTCS B1B83 To B2101 >> B1B91-Driver Seat Track Position Sensor Configuration Mismatch >> Circuit Schematic
