Map Sensor (Gas) Connector End View

WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

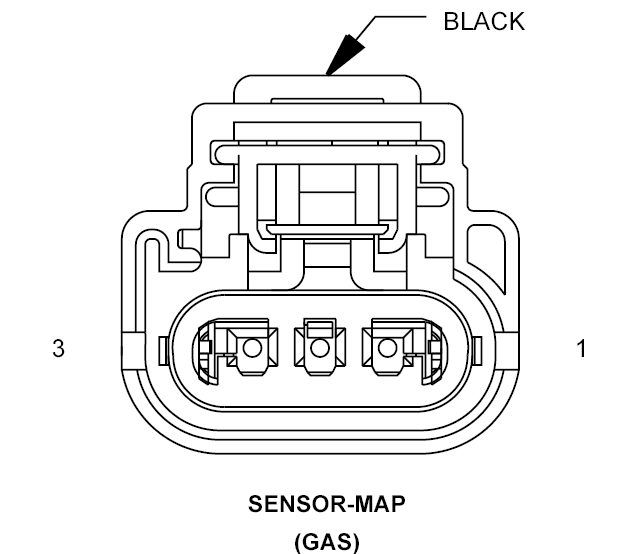

SENSOR-MAP - BLACK 3-WAY (GAS)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K1 20VT/LB	MAP SIGNAL
2	K900 20DB/DG	SENSOR GROUND
3	K857 20BR/LG	5 VOLT SUPPLY
