Driver Seat Track Position Sensor Connector End View

WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

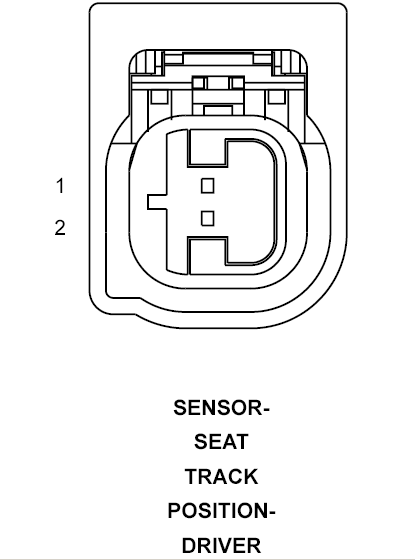

SENSOR-SEAT TRACK POSITION-DRIVER - 2-WAY FEMALE

GPM880338Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 R261 20LB/TN DRIVER SEAT POSITION SENSOR DATA
2 R263 20LB/BK DRIVER SEAT POSITION SENSOR VOLTAGE
