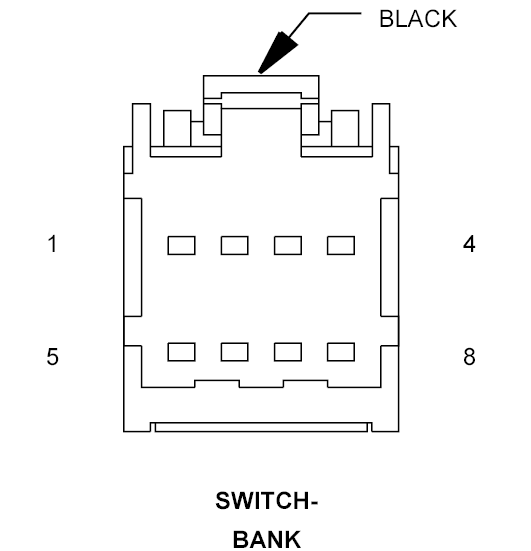

Bank Switch Connector End View

WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

SWITCH-BANK - BLACK 8-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	-	-
3	-	-
4	-	-
5	-	-
6	A935 20RD/LB	FUSED B(+)
7	Z940 20BK/LG	GROUND
8	D506 20WT/DG	LIN BUS
