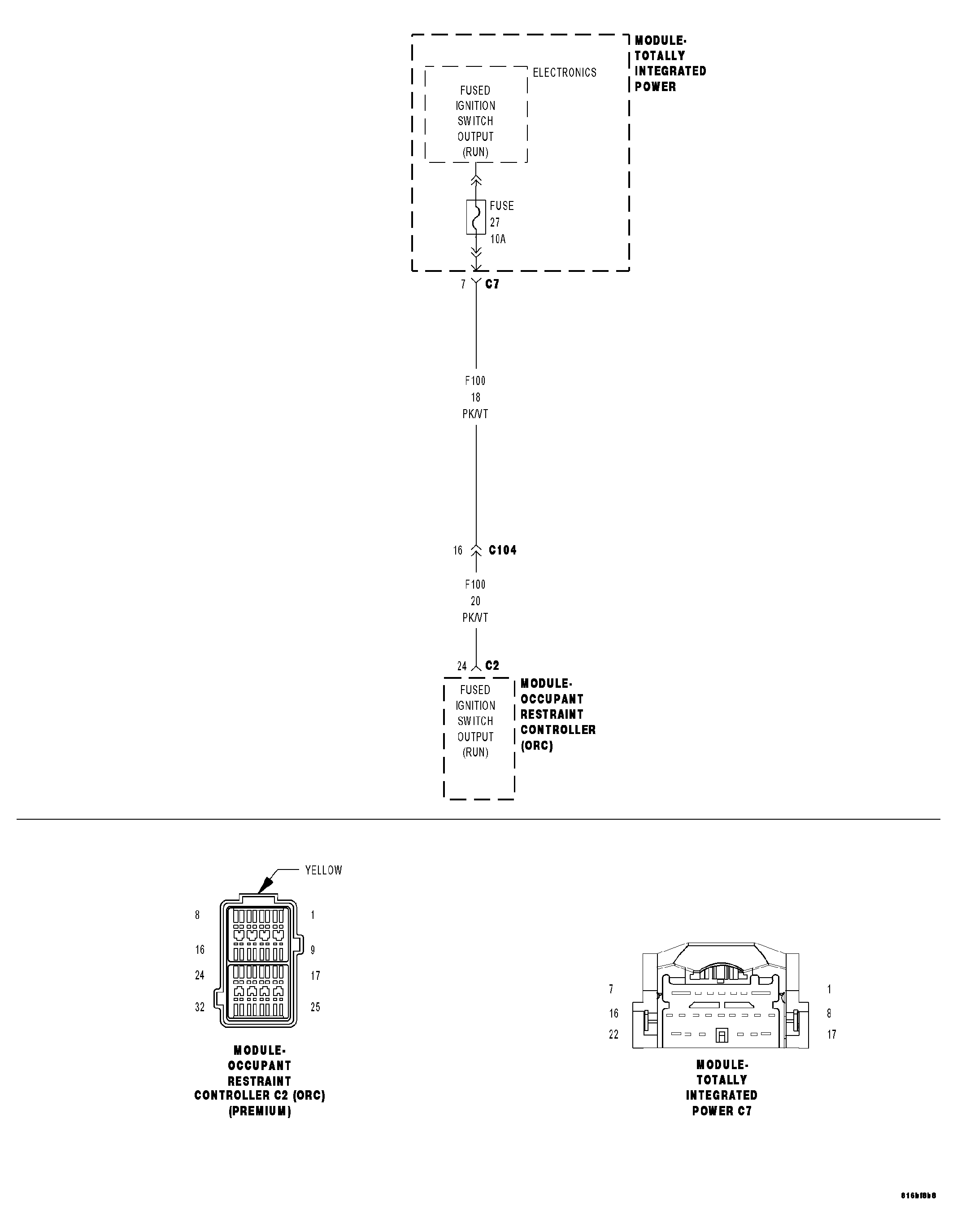

Home >> Chrysler >> 2008 >> PT Cruiser Base, 2D Convertible, 2.4 X, Automatic >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition System - Electrical Diagnostics >> Ignition System - Electrical Diagnostics >> DTC Troubleshooting >> B2124-Ignition Run Control 1 Circuit Open >> Circuit Schematic
