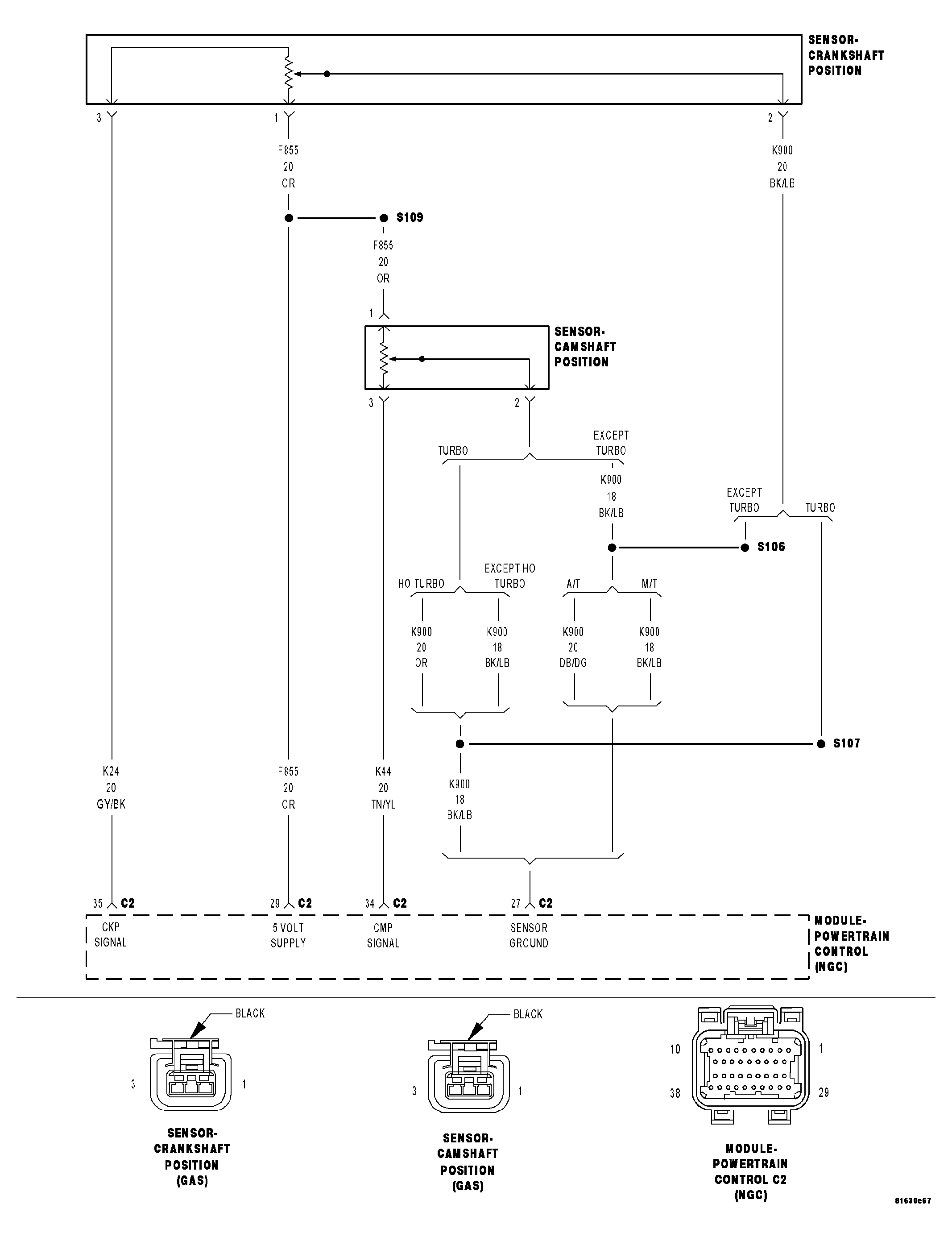

Home >> Chrysler >> 2008 >> PT Cruiser Base, 2D Convertible, 2.4 E >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0128 To P0335 >> P0335-Crankshaft Position Sensor Circuit >> Circuit Schematic
