Left Front Fog Lamp Connector End View

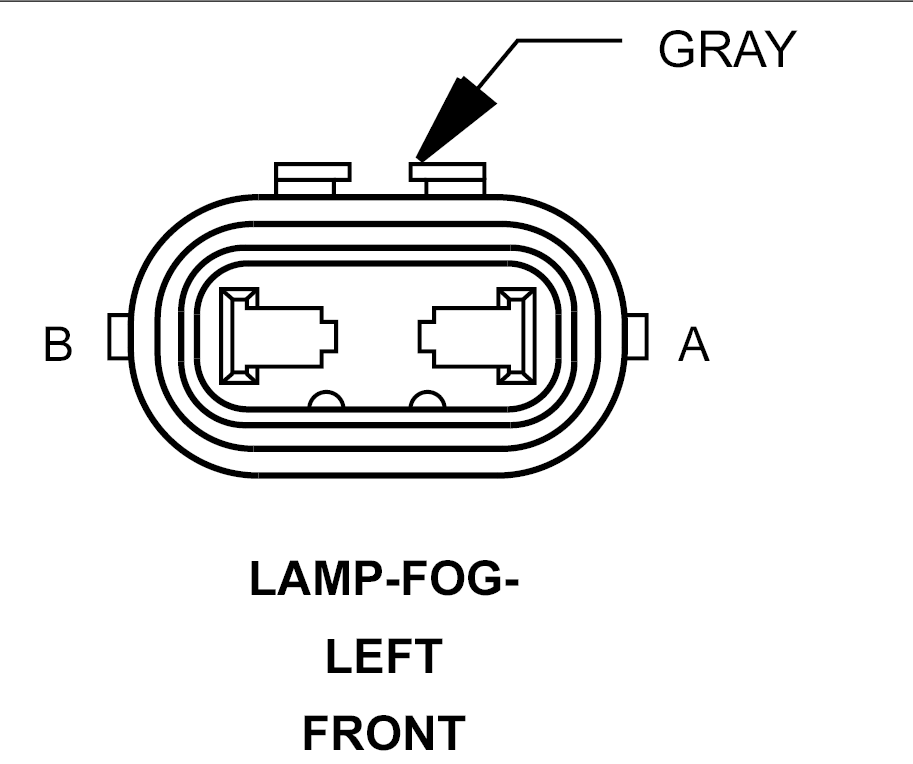

LAMP-FOG-LEFT FRONT - GRAY 2-WAY

GPT780156Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A L89 18WT/YL FRONT FOG LAMP CONTROL OUTPUT
B Z902 20BK GROUND
