Tow Away Alarm Switch Connector End View

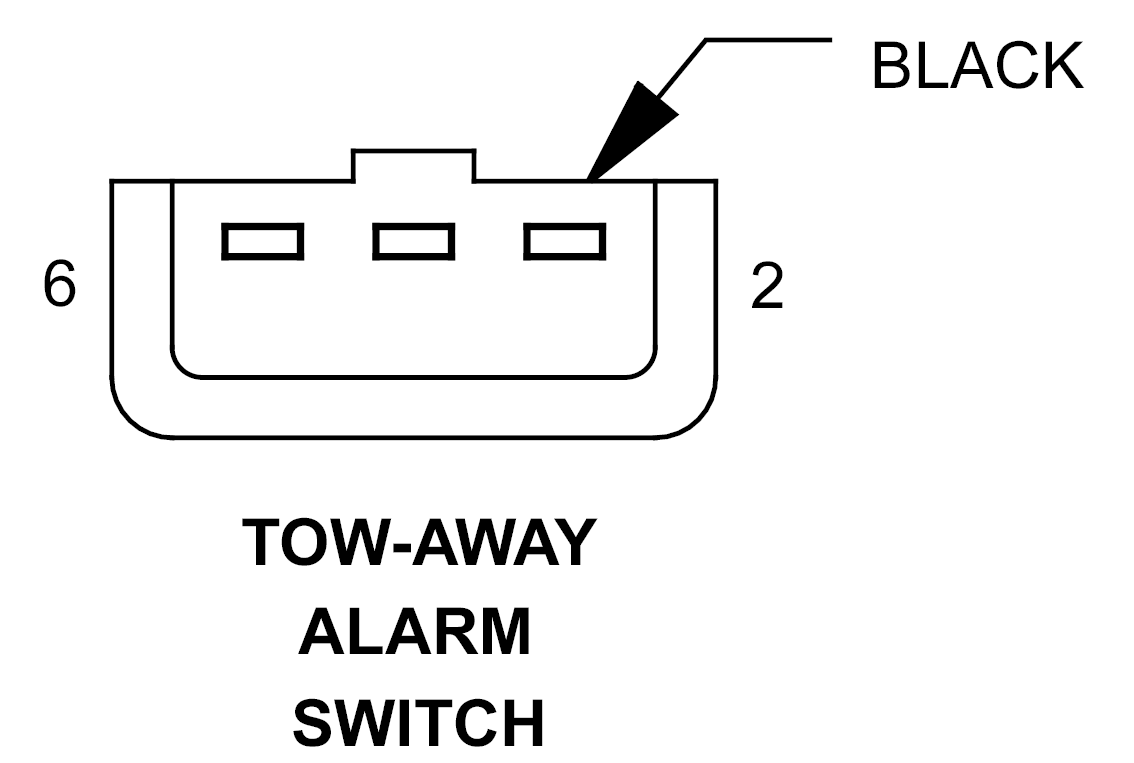

Tow Away Alarm Switch Connector End View
TOW-AWAY ALARM SWITCH - BLACK 3-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
2
22RD/DG
TOW-AWAY ALARM SWITCH LED CONTROL
4
-
-
6
20WT/DG
TOW-AWAY ALARM SWITCH SENSE
Courtesy of CHRYSLER CORP.
