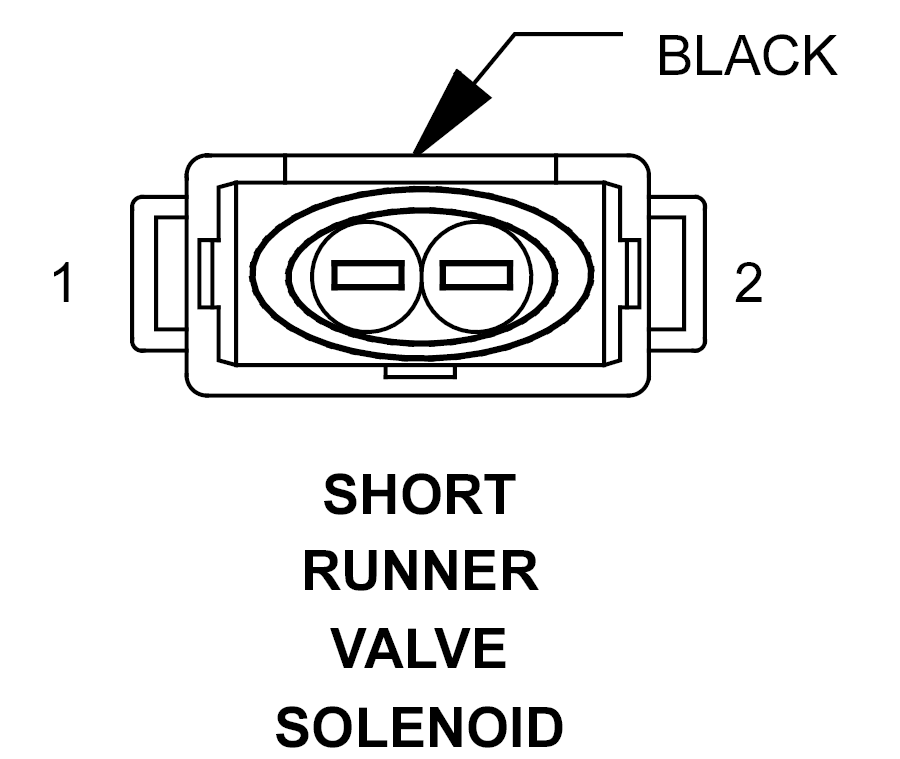

Short Runner Valve Solenoid Connector End View

SHORT RUNNER VALVE SOLENOID - BLACK 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	20DG/VT	SHORT RUNNER VALVE SOLENOID CONTROL
2	20RD/DG	FUSED ENGINE CONTROL RELAY OUTPUT
