Right Turn Signal Lamp (Export) Connector End View
Right Turn Signal Lamp (Export) Connector End View

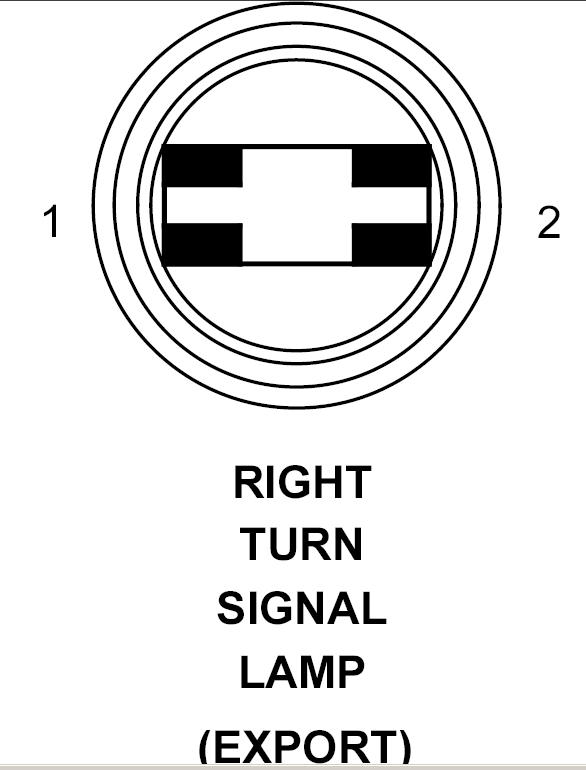

RIGHT TURN SIGNAL LAMP - 2-WAY (EXPORT)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
18BR
GROUND
2
18BK/DG
RIGHT TURN SIGNAL OUTPUT
