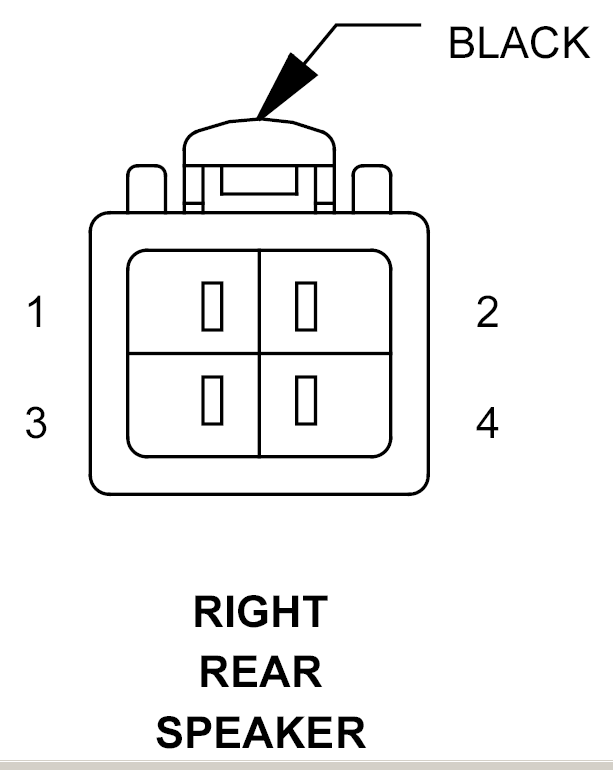

Right Rear Speaker Connector End View
RIGHT REAR SPEAKER - BLACK 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
16BL/RD |
AMPLIFIED RIGHT REAR SPEAKER (+) |
| 2 |
16BK/YL |
AMPLIFIED RIGHT REAR SPEAKER (-) |
| 3 |
16VT |
RIGHT REAR SPEAKER SUPPLY VOLTAGE |
| 4 |
16RD/YL |
RIGHT REAR SPEAKER GROUND |
