Crossfire 2D Convertible, Standard
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
Connector End Views
>>
Connector Pin-Outs
>>

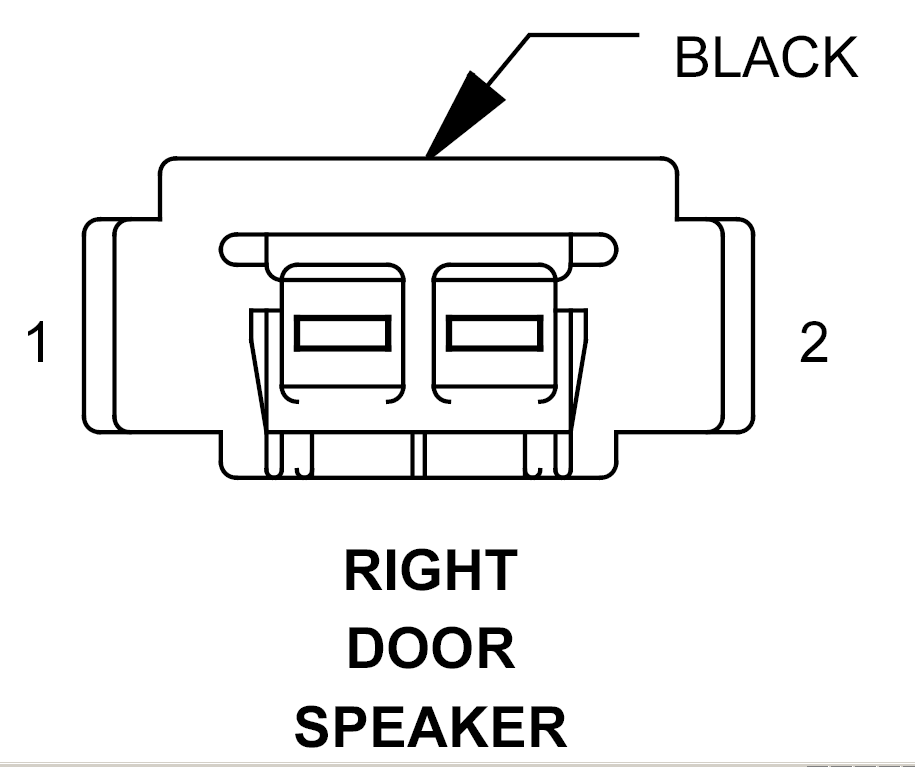

Right Door Speaker Connector End View
Right Door Speaker Connector End View
RIGHT DOOR SPEAKER - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
16BR/DG
AMPLIFIED RIGHT DOOR SPEAKER (-)
2
16BK/BL
AMPLIFIED RIGHT DOOR SPEAKER (+)
Courtesy of CHRYSLER CORP.
