Right Door Ajar Switch Connector End View

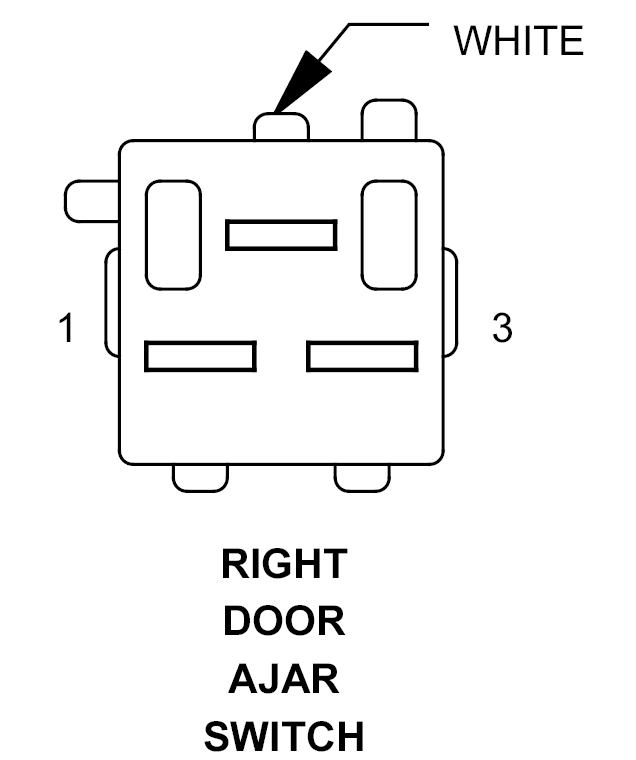

Right Door Ajar Switch Connector End View
RIGHT DOOR AJAR SWITCH - WHITE 3-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
20BR
GROUND
2
20BR/PK
RIGHT DOOR AJAR SWITCH SENSE
2
20BR/PK
RIGHT DOOR AJAR SWITCH SENSE
3
-
-
Courtesy of CHRYSLER CORP.
