Retainer Switch Latch (Roadster (Convertible)) Connector End View

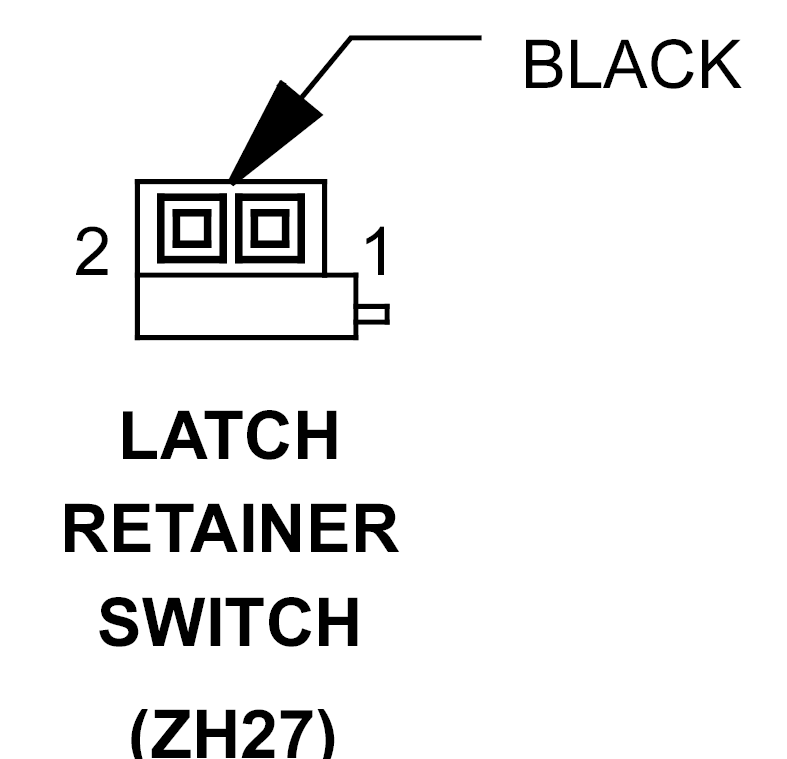

LATCH RETAINER SWITCH - BLACK 2-WAY (ZH27)

GZH780138Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20BR GROUND
2 20DG/WT LATCH RETAINER SWITCH SENSE
