Passenger Seat Belt Switch Connector End View

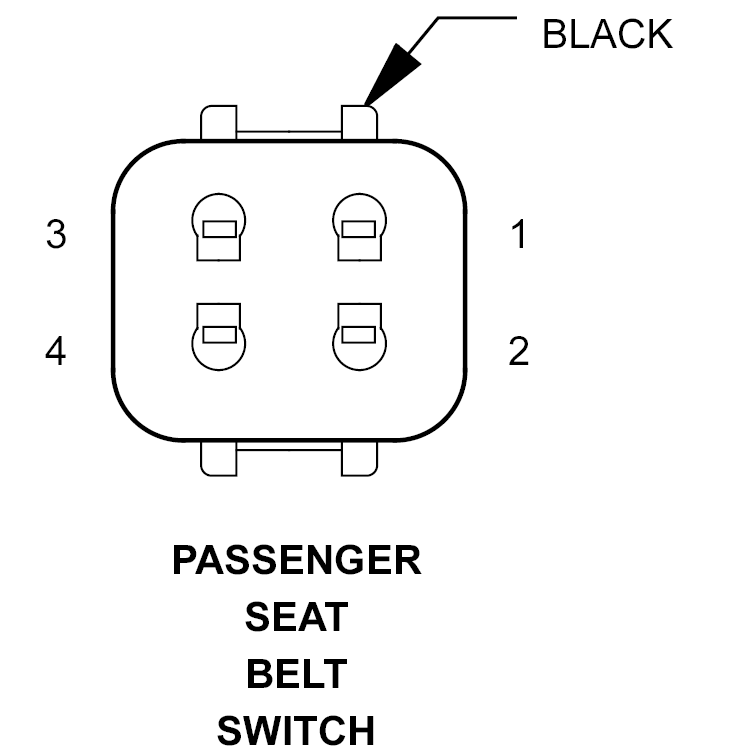

PASSENGER SEAT BELT SWITCH - BLACK 4-WAY

GZH780176Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20GY/BL PASSENGER SEAT BELT SWITCH SENSE
2 20BR GROUND
3 - -
4 - -
