Crossfire 2D Convertible, Standard
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
Connector End Views
>>
Connector Pin-Outs
>>

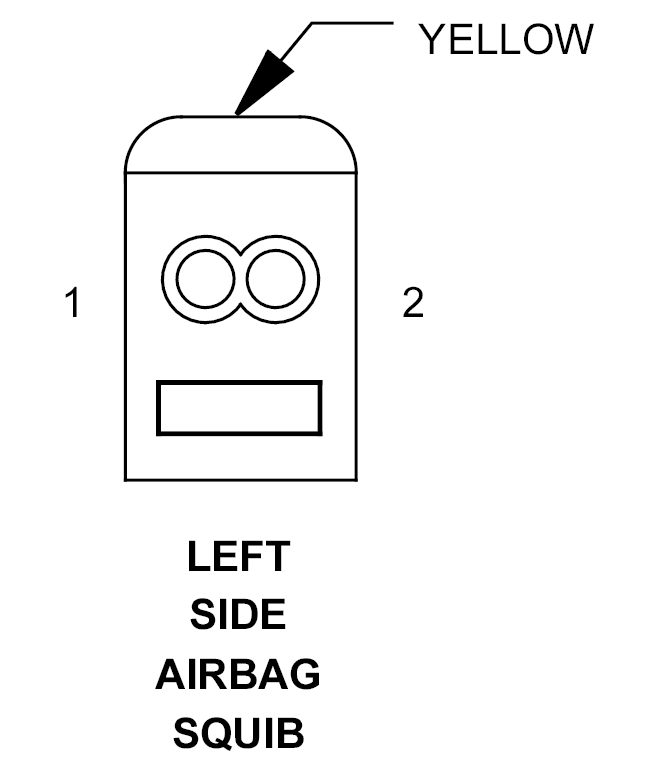

Left Side Airbag Squib Connector End View
Left Side Airbag Squib Connector End View
LEFT SIDE AIRBAG SQUIB - YELLOW 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
20BL/GY
LEFT SIDE SQUIB LINE 1
2
20BL/RD
LEFT SIDE SQUIB LINE 2
Courtesy of CHRYSLER CORP.
