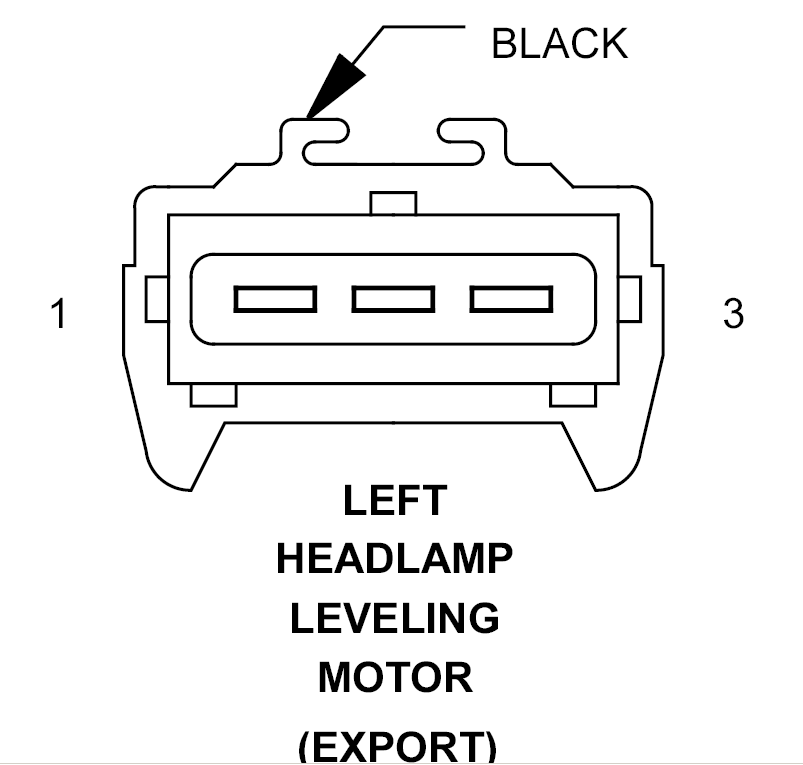

Left Headlamp Leveling Motor (Export) Connector End View
LEFT HEADLAMP LEVELING MOTOR - BLACK 3-WAY (EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
18BR |
GROUND |
| 2 |
18YL/VT |
HEADLAMP ADJUST SIGNAL |
| 3 |
18DG/WT |
FUSED ILLUMINATION CONTROL MODULE OUTPUT |
