Left Door Speaker Connector End View

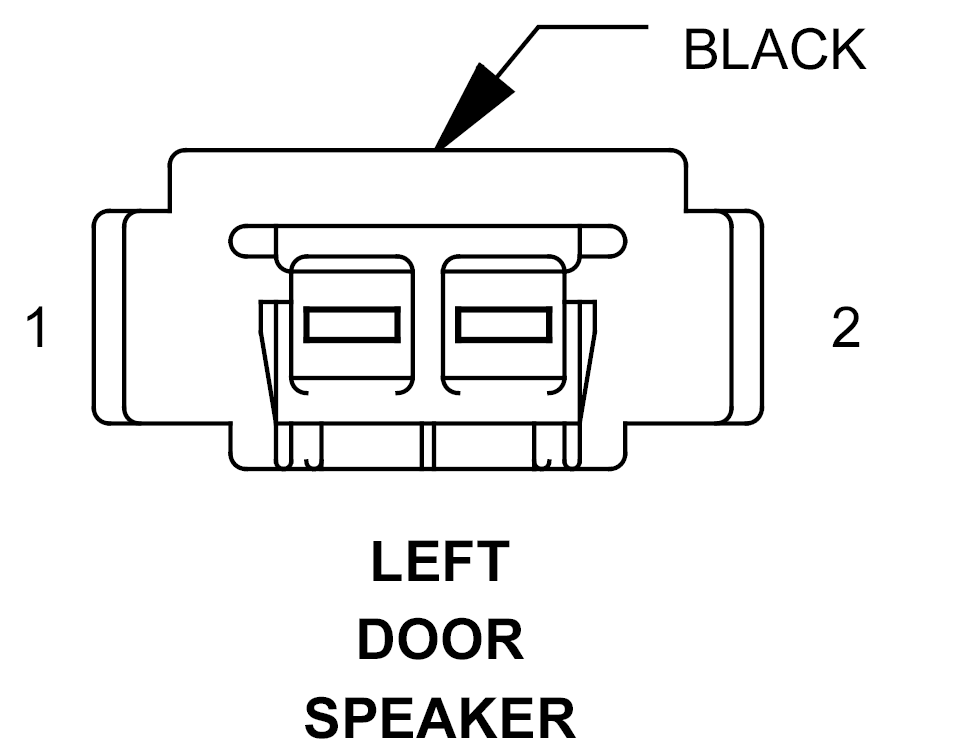

LEFT DOOR SPEAKER - BLACK 2-WAY

GZH780140Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 16BR/DG AMPLIFIED LEFT DOOR SPEAKER (-)
2 16BK/BL AMPLIFIED LEFT DOOR SPEAKER (+)
