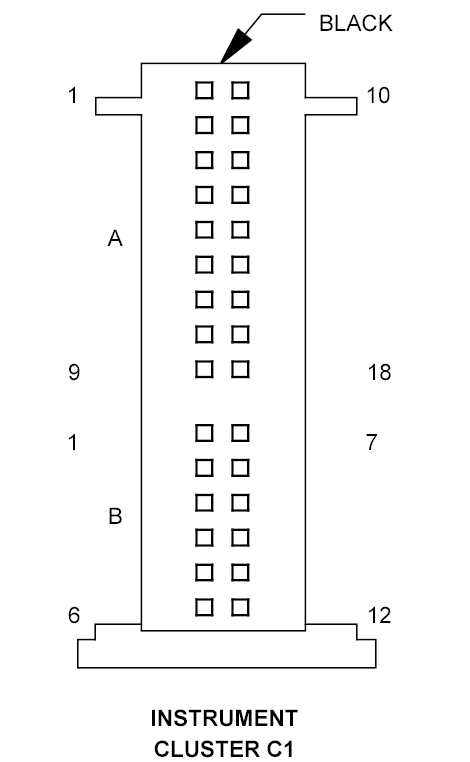

Instrument Cluster Connector End View (C1)
INSTRUMENT CLUSTER C1 - BLACK 30-WAY
| CAV | CIRCUIT | FUNCTION |
| 1A | 20BK/WT | LEFT TURN SIGNAL OUTPUT |
| 1B | 20BL | LOW BATTERY INDICATOR OUTPUT |
| 2B | - | - |
| 2A | 20WT/BK | HIGH BEAM INDICATOR LAMP |
| 3A | 18BR | GROUND |
| 3B | - | - |
| 4A | 20BL/WT | FUSED ILLUMINATION CONTROL MODULE OUTPUT |
| 4B | 20BR/YL | COOLANT/WASHER LEVEL SIGNAL |
| 5B | 20DG | AMBIENT TEMPERATURE SENSOR SIGNAL |
| 5A | 18GY/BL | FUSED ILLUMINATION FEED |
| 6B | 20BR | AMBIENT TEMPERATURE SENSOR GROUND |
| 6A | 20BR/GY | KEY-IN IGNITION SWITCH SENSE |
| 7A | 20BR/BK | FUSED ILLUMINATION CONTROL MODULE OUTPUT |
| 7B | 20BR/WT | BRAKE FLUID LEVEL SWITCH SENSE |
| 8B | - | - |
| 8A | 22YL/VT | SERIAL COMMUNICATION K1 |
| 9A | 18PK/RD/BL | FUSED IGNITION SWITCH OUTPUT |
| 9B | 20WT | CAN C BUS (+) |
| 10A | 20BK/DG | RIGHT TURN SIGNAL OUTPUT |
| 10B | 20DG | CAN C BUS (-) |
| 11A | 20RD/YL | FUSED B(+) |
| 11B | 22BK/BL | SCI TRANSMIT |
| 12A | 18BR | GROUND |
| 12B | 20BR | COOLANT/WASHER LEVEL RETURN |
| 13A | 18GY | FUSED ILLUMINATION CONTROL MODULE OUTPUT |
| 14A | - | - |
| 15A | - | - |
| 16A | - | - |
| 17A | 22BK/WT | SERIAL COMMUNICATION K2 |
| 18A | - | - |
