Inline Connector End View (C240 )

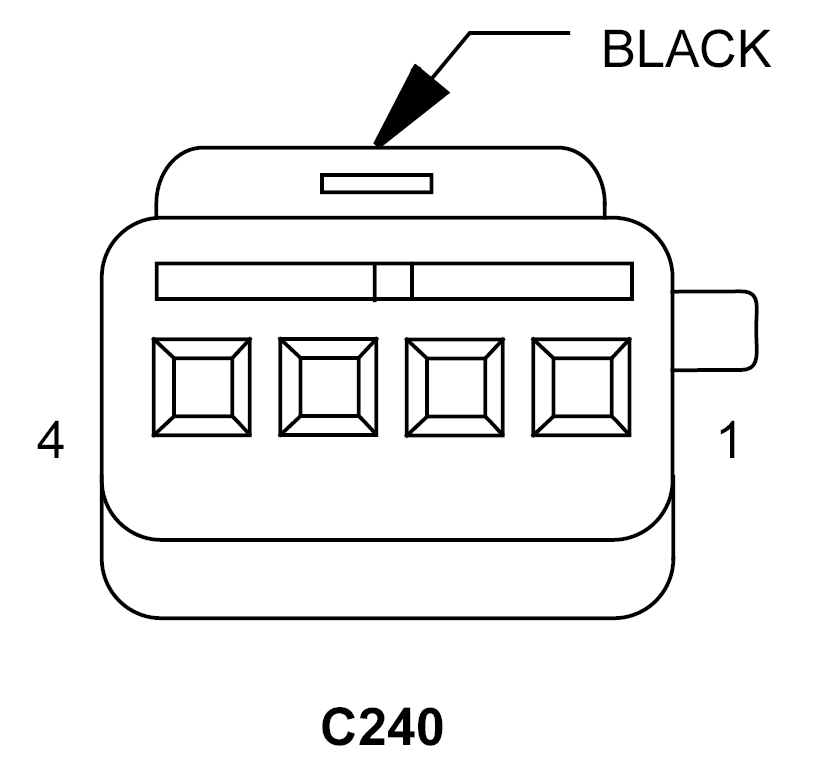

C240 - BLACK 4-WAY FEMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20YL/BK |
LEFT FRONT IMPACT SENSOR SIGNAL |
| 2 |
20BR |
GROUND |
| 3 |
20YL/WT |
RIGHT FRONT IMPACT SENSOR SIGNAL |
| 4 |
20BR |
GROUND |

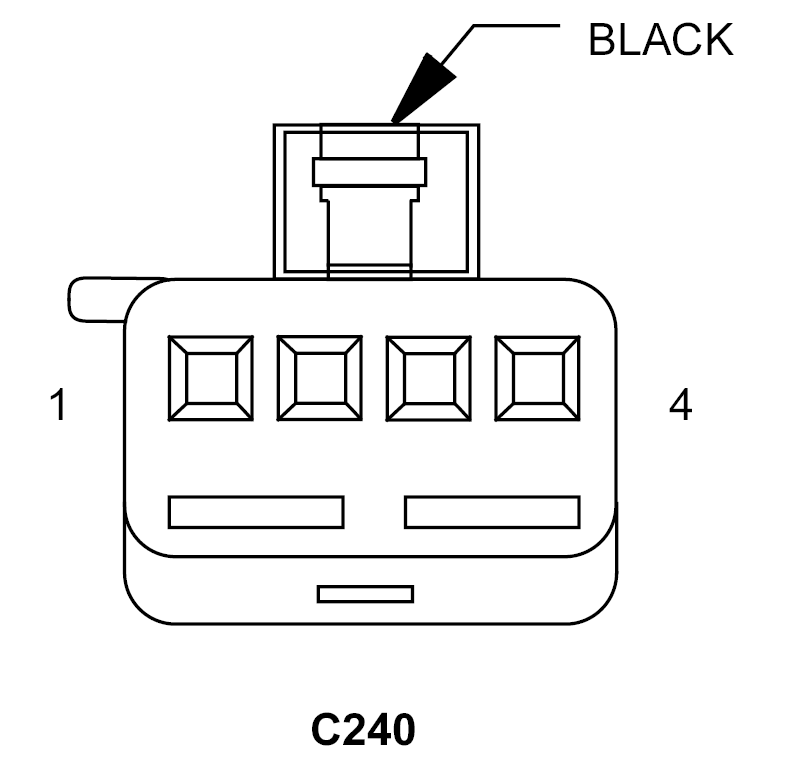

C240 - BLACK 4-WAY MALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20YL/BK |
LEFT FRONT IMPACT SENSOR SIGNAL |
| 2 |
20BR |
GROUND |
| 3 |
20YL/WT |
RIGHT FRONT IMPACT SENSOR SIGNAL |
| 4 |
20BR |
GROUND |
