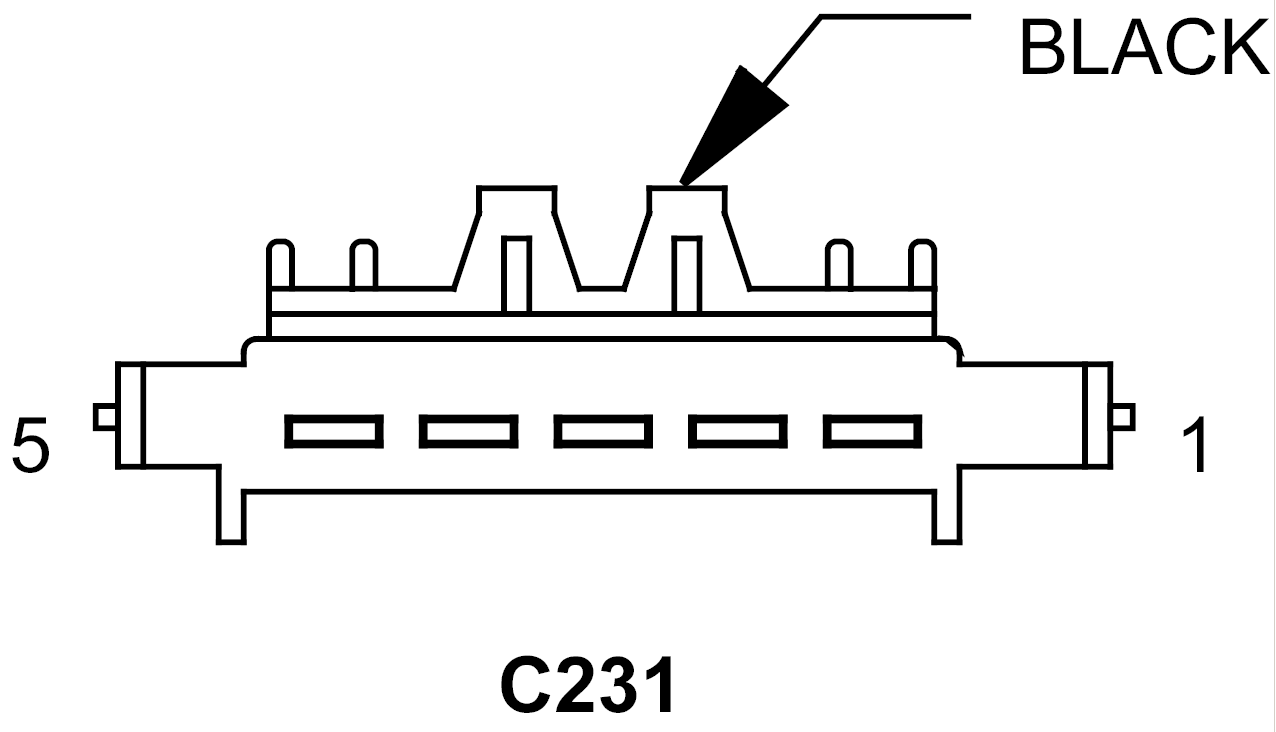

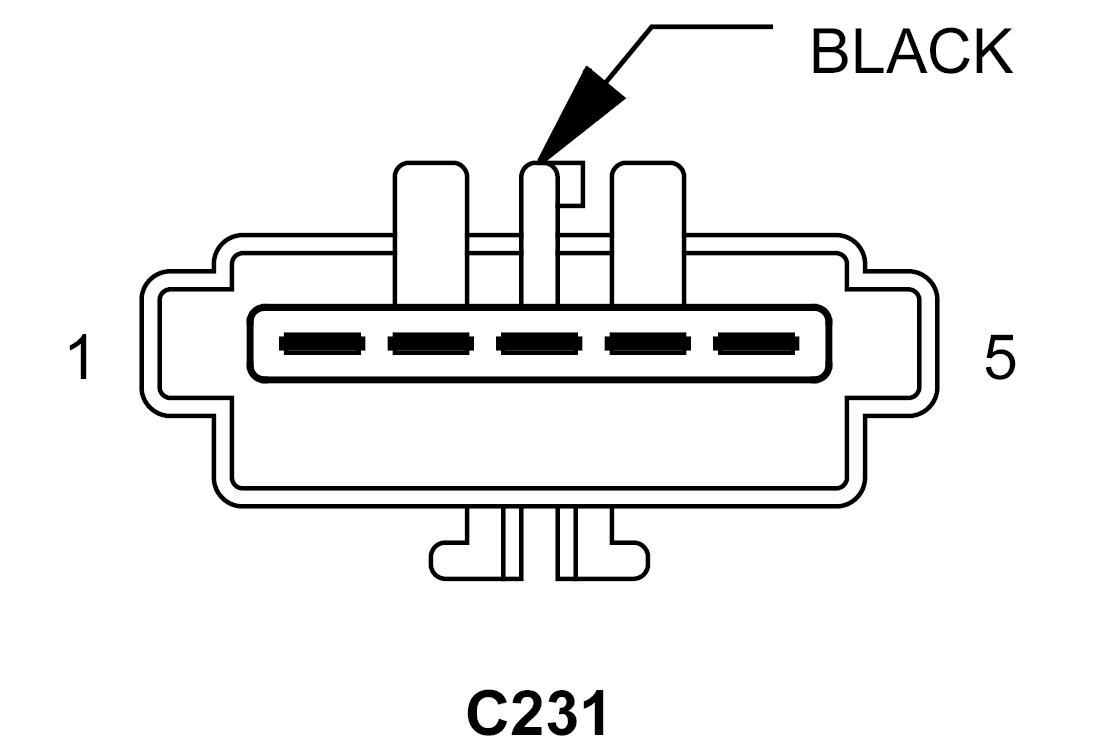

Inline Connector End View (C231 )
C231 - BLACK 5-WAY FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | 18BK/BL | RIGHT DOOR SPEAKER (+) |
| 1 | 16BK/BL | RIGHT DOOR SPEAKER (+) |
| 2 | 18BR/DG | RIGHT DOOR SPEAKER (-) |
| 2 | 16BR/DG | RIGHT DOOR SPEAKER (-) |
| 3 | 14DG | RIGHT FRONT POWER WINDOW DRIVER (UP) |
| 4 | 14BK | RIGHT FRONT POWER WINDOW DRIVER (DOWN) |
| 5 | - | - |
C231 - BLACK 4-WAY MALE
| CAV | CIRCUIT | FUNCTION |
| 1 | 16BK/PK | AMPLIFIED RIGHT DOOR SPEAKER (+) (AMPLIFIER) |
| 1 | 16YL | RIGHT DOOR SPEAKER (+) (EXCEPT AMPLIFIER) |
| 2 | 16BR/YL | AMPLIFIED RIGHT DOOR SPEAKER (-) (AMPLIFIER) |
| 2 | 16YL/BK | RIGHT DOOR SPEAKER (-) (EXCEPT AMPLIFIER) |
| 3 | 14DG/WT | RIGHT FRONT POWER WINDOW DRIVER (UP) |
| 4 | 14BK/WT | RIGHT FRONT POWER WINDOW DRIVER (DOWN) |
| 5 | - | - |
