Inline Connector End View (C230 )

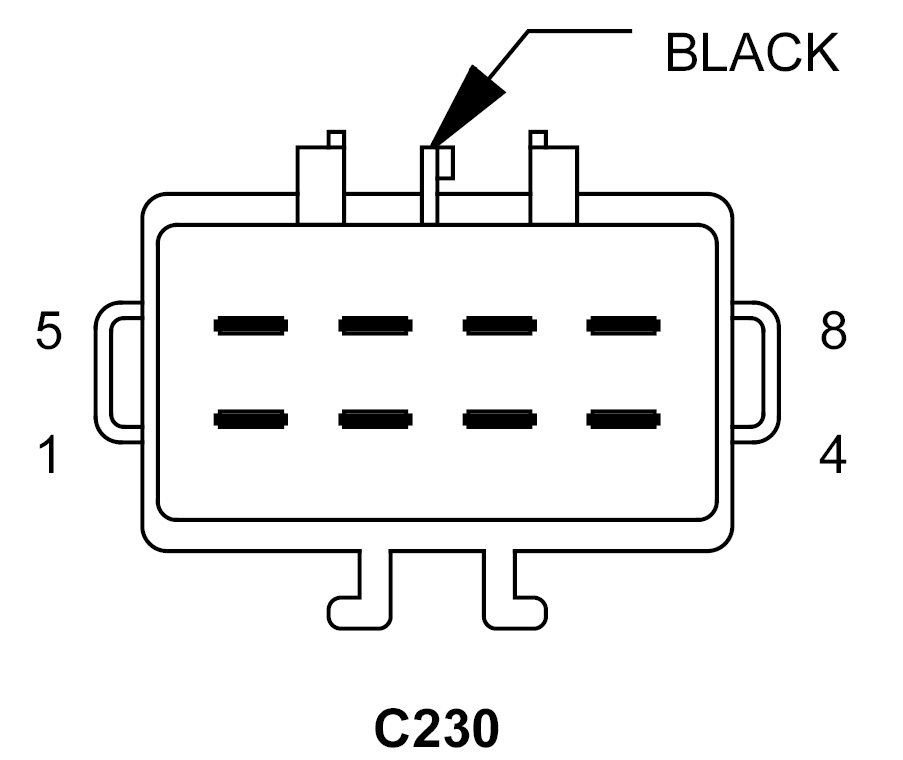

C230 - BLACK 8-WAY FEMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
18PK/RD/WT |
FUSED HEATED MIRROR SUPPLY |
| 2 |
18BR |
GROUND |
| 3 |
18WT |
RIGHT MIRROR VERTICAL DRIVER |
| 4 |
18GY |
RIGHT MIRROR COMMON DRIVER |
| 5 |
18BK |
RIGHT MIRROR HORIZONTAL DRIVER |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
- |
- |

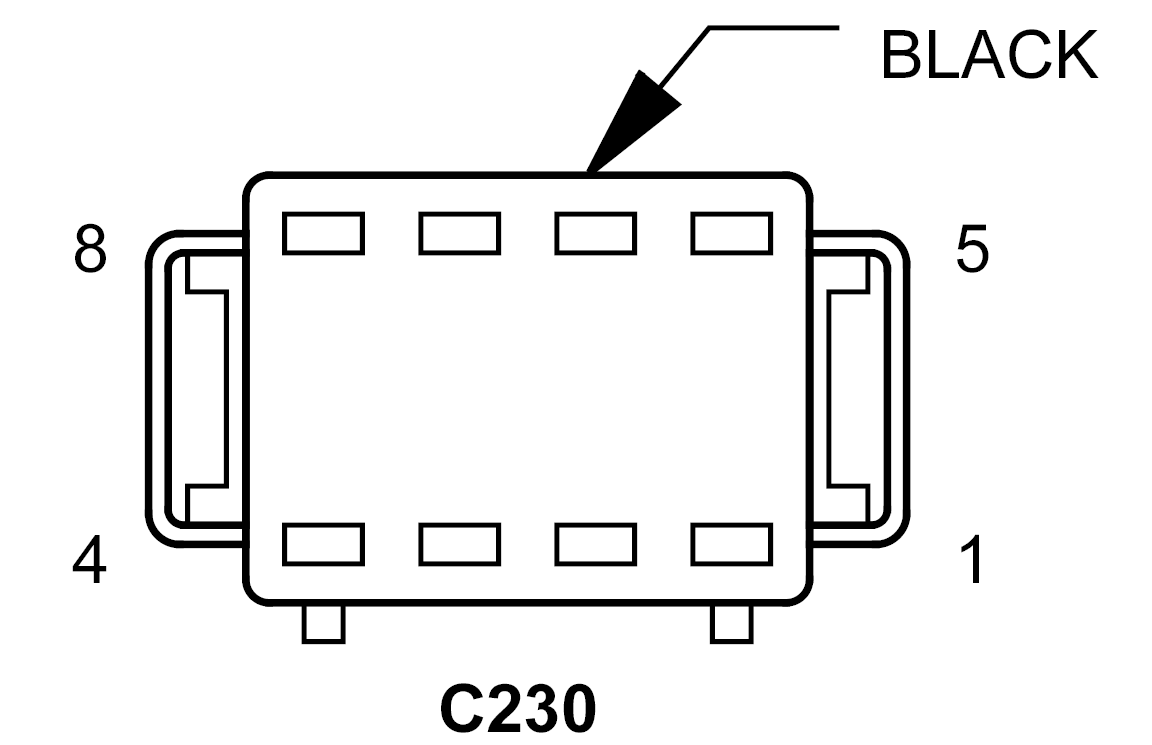

C230 - BLACK 8-WAY MALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
18PK/RD/WT |
FUSED HEATED MIRROR SUPPLY |
| 2 |
18BR |
GROUND |
| 3 |
18WT |
RIGHT MIRROR VERTICAL DRIVER |
| 4 |
18GY/VT |
RIGHT MIRROR COMMON DRIVER |
| 5 |
18BK/VT |
RIGHT MIRROR HORIZONTAL DRIVER |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
- |
- |
