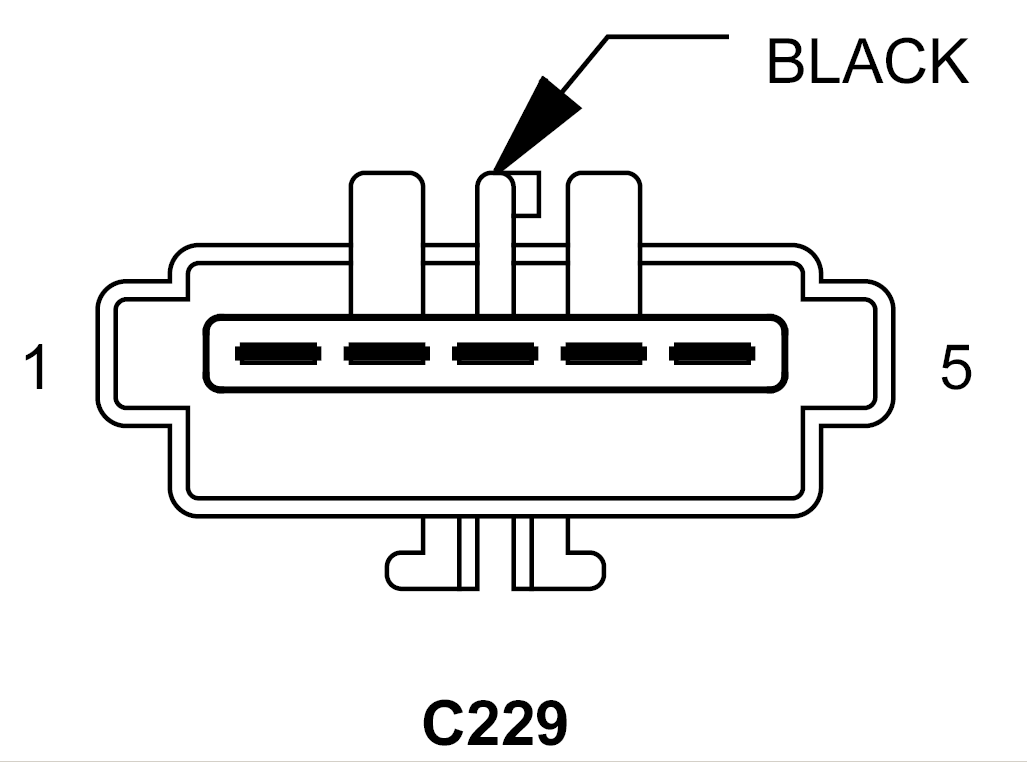

Inline Connector End View (C229 )
C229 - BLACK 5-WAY FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | 18BK/BL | LEFT DOOR SPEAKER (+) |
| 1 | 16BK/BL | LEFT DOOR SPEAKER (+) |
| 2 | 18BR/DG | LEFT DOOR SPEAKER (-) |
| 2 | 16BR/DG | LEFT DOOR SPEAKER (-) |
| 3 | 14DG | LEFT FRONT POWER WINDOW DRIVER (UP) |
| 4 | 14BK | LEFT FRONT POWER WINDOW DRIVER (DOWN) |
| 5 | - | - |

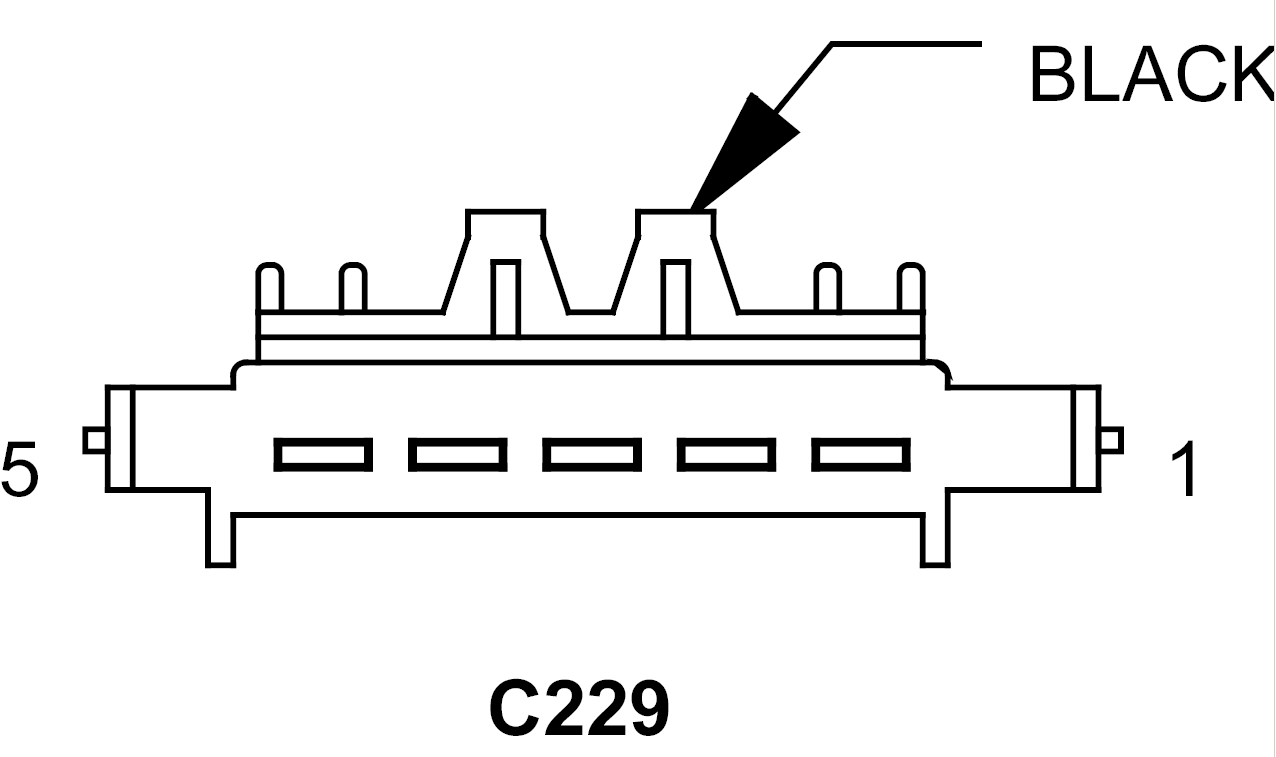

C229 - BLACK 5-WAY MALE
| CAV | CIRCUIT | FUNCTION |
| 1 | 16BK/BL | AMPLIFIED LEFT DOOR SPEAKER (+) (AMPLIFIER) |
| 1 | 16WT | LEFT DOOR SPEAKER (+) (EXCEPT AMPLIFIER) |
| 2 | 16BR/DG | AMPLIFIED LEFT DOOR SPEAKER (-) (AMPLIFIER) |
| 2 | 16WT/YL | LEFT DOOR SPEAKER (-) (EXCEPT AMPLIFIER) |
| 3 | 14DG | LEFT FRONT POWER WINDOW DRIVER (UP) |
| 4 | 14BK | LEFT FRONT POWER WINDOW DRIVER (DOWN) |
| 5 | - | - |
