Inline Connector End View (C226 )

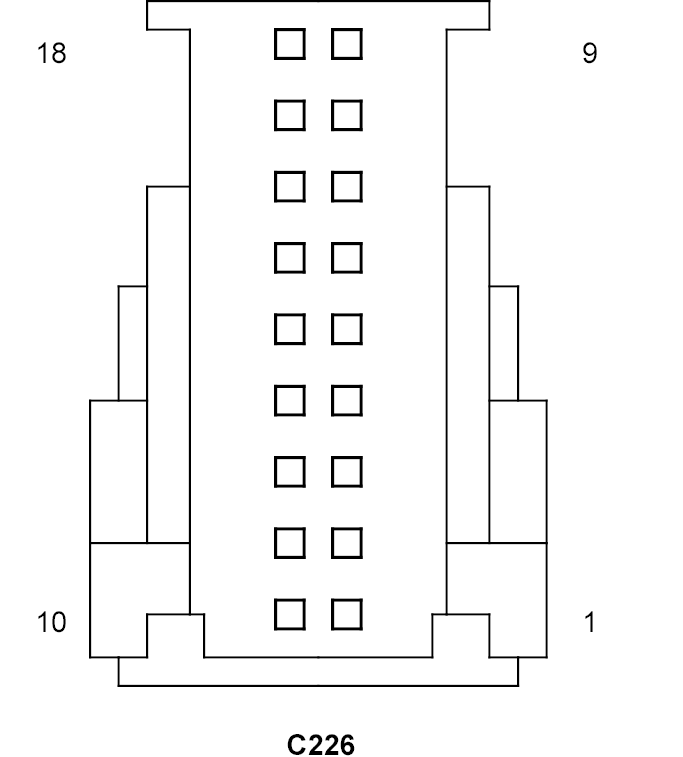

C226 - 18-WAY FEMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18GY	WASHER PUMP MOTOR CONTROL
2	20BR/VT	LEFT COOLANT CIRCULATION VALVE CONTROL
3	20BR/RD	RIGHT COOLANT CIRCULATION VALVE CONTROL
4	20BR/DG	COOLANT CIRCULATION PUMP CONTROL
5	22BL	SCI TRANSMIT
6	18RD/WT	A/C PRESSURE SENSOR 5 VOLT SUPPLY
7	18BL/DG	A/C COMPRESSOR CLUTCH CONTROL
8	18BR/YL	A/C PRESSURE SENSOR GROUND
9	18BL/RD	A/C PRESSURE SENSOR SIGNAL
10	20DG/YL	SCI RECEIVE
11	20BL/YL	STEERING ANGLE SENSOR SIGNAL
12	-	-
13	20RD/WT	FUSED IGNITION SWITCH OUTPUT
14	20BR/YL	SENSOR GROUND
15	-	-
16	-	-
17	-	-
18	-	-

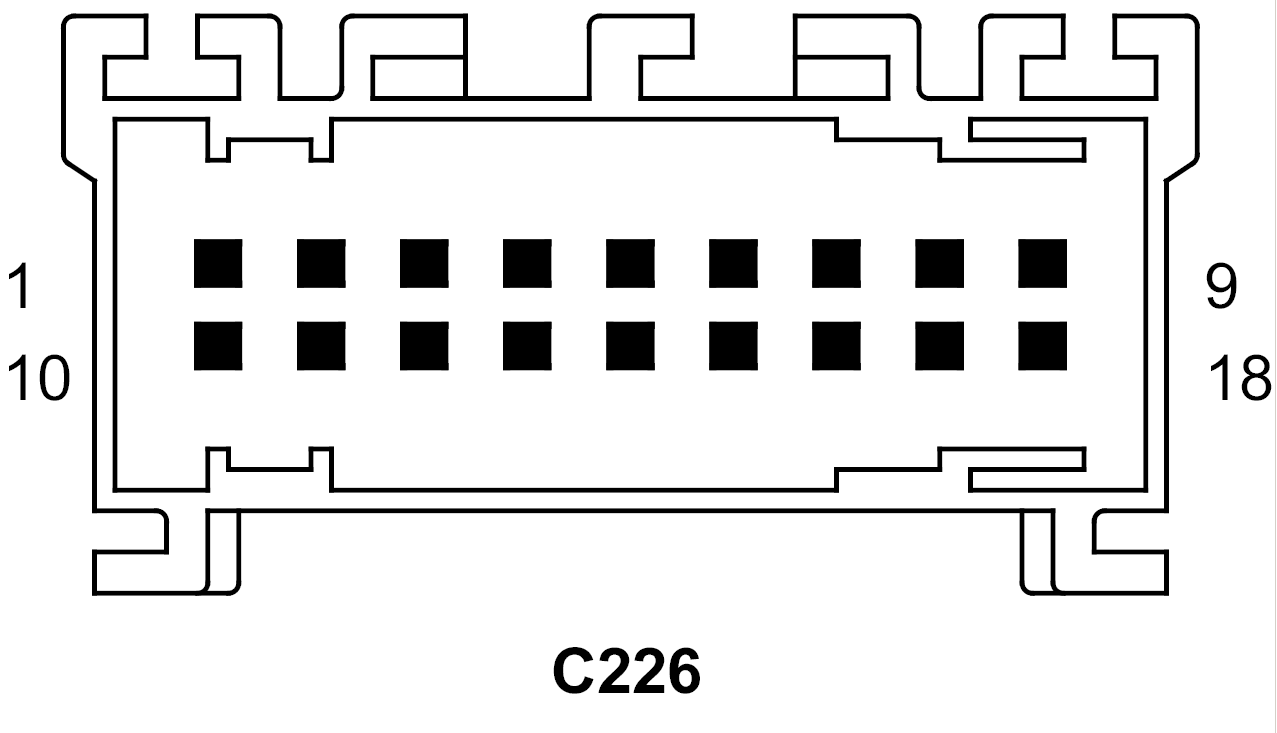

C226 - 18-WAY MALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18GY	WASHER PUMP MOTOR CONTROL
2	20BR/VT	LEFT COOLANT CIRCULATION VALVE CONTROL
3	20BR/RD	RIGHT COOLANT CIRCULATION VALVE CONTROL
4	20BR/DG	COOLANT CIRCULATION PUMP CONTROL
5	22BL	SCI TRANSMIT
6	22RD/WT	A/C PRESSURE SENSOR 5 VOLT SUPPLY
7	18BL/DG	A/C COMPRESSOR CLUTCH CONTROL
8	20BR/YL	A/C PRESSURE SENSOR GROUND
9	22BL/RD	A/C PRESSURE SENSOR SIGNAL
10	20DG/YL	SCI RECEIVE
11	20BL/YL	STEERING ANGLE SENSOR SIGNAL
12	-	-
13	20RD/WT	FUSED IGNITION SWITCH OUTPUT
14	20BR/YL	SENSOR GROUND
15	-	-
16	-	-
17	-	-
18	-	-
