Inline Connector End View (C224 )

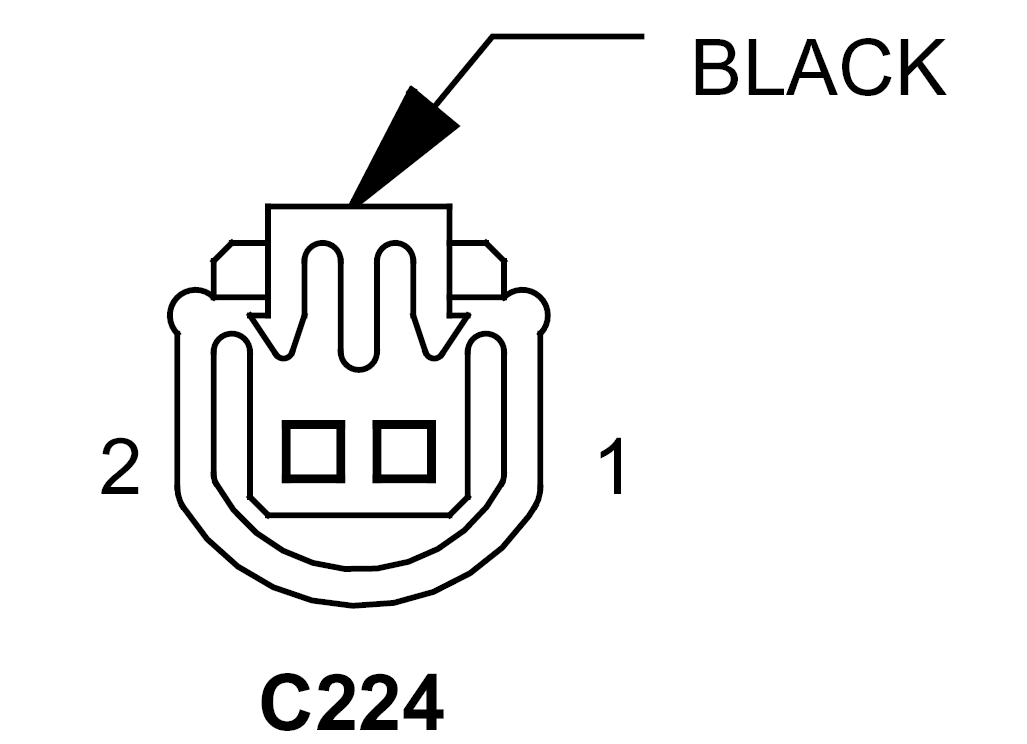

C224 - BLACK 2-WAY FEMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BL/BK |
RIGHT SIDE SQUIB LINE 1 |
| 2 |
20BL/WT |
RIGHT SIDE SQUIB LINE 2 |

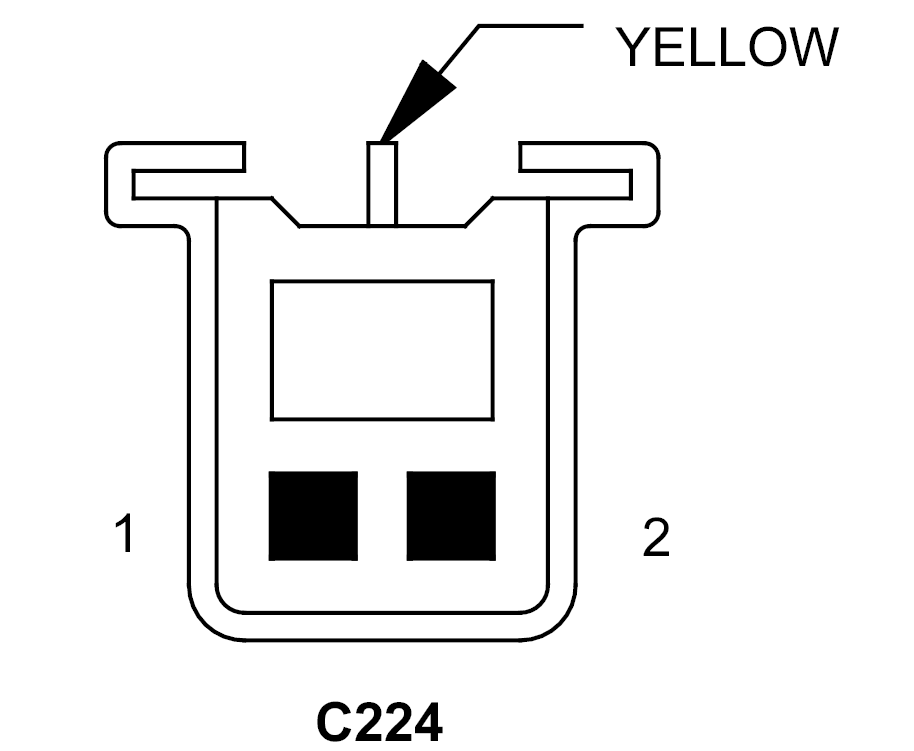

C224 - YELLOW 2-WAY MALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BL/RD |
RIGHT SIDE SQUIB LINE 1 |
| 2 |
20BL/GY |
RIGHT SIDE SQUIB LINE 2 |
