Inline Connector End View (C223 )

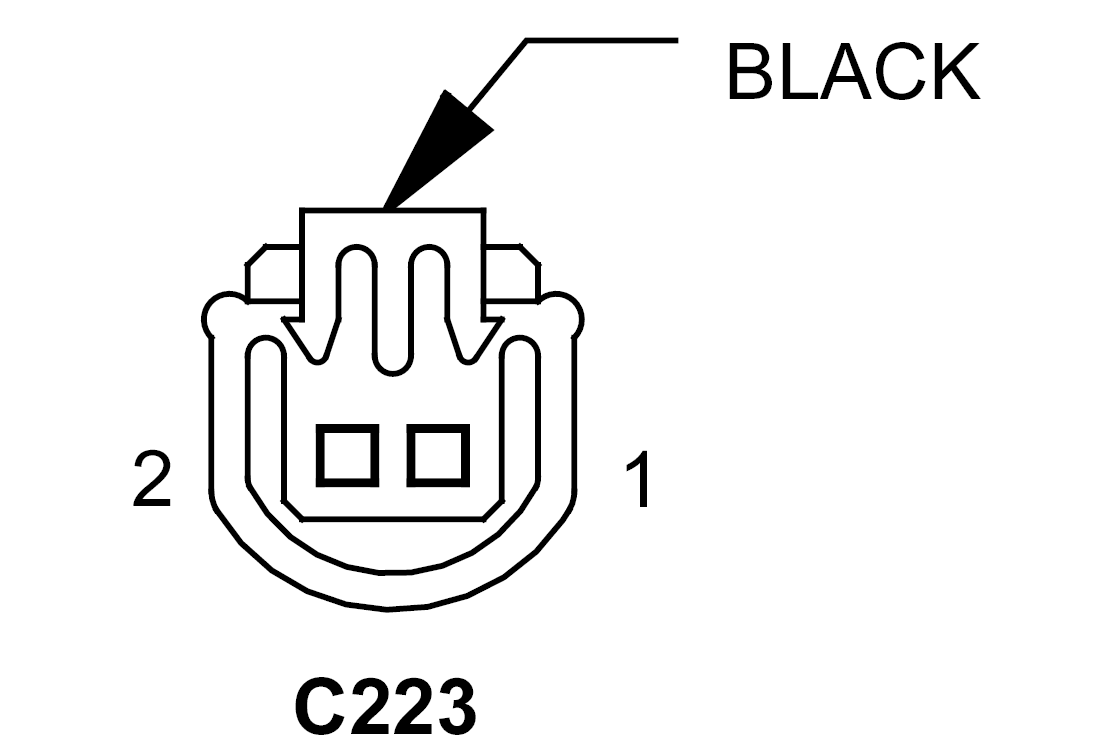

C223 - BLACK 2-WAY FEMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BL/RD |
LEFT SIDE SQUIB LINE 2 |
| 2 |
20BL/GY |
LEFT SIDE SQUIB LINE 1 |

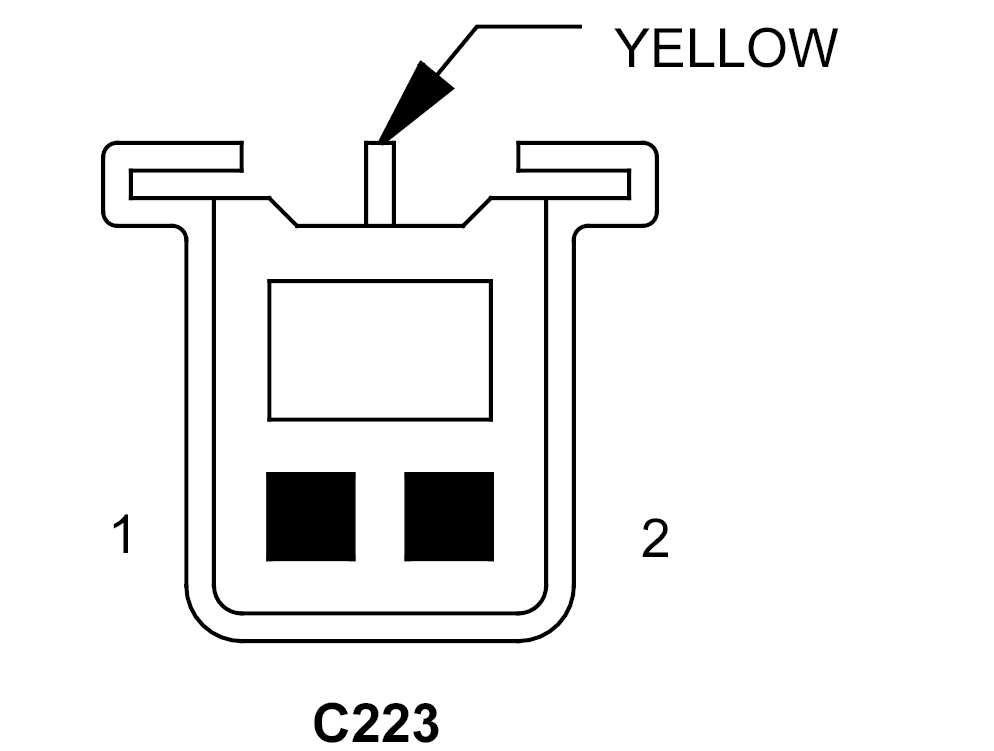

C223 - YELLOW 2-WAY MALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BL/RD |
LEFT SIDE SQUIB LINE 2 |
| 2 |
20BL/GY |
LEFT SIDE SQUIB LINE 1 |
