Inline Connector End View (C219 )

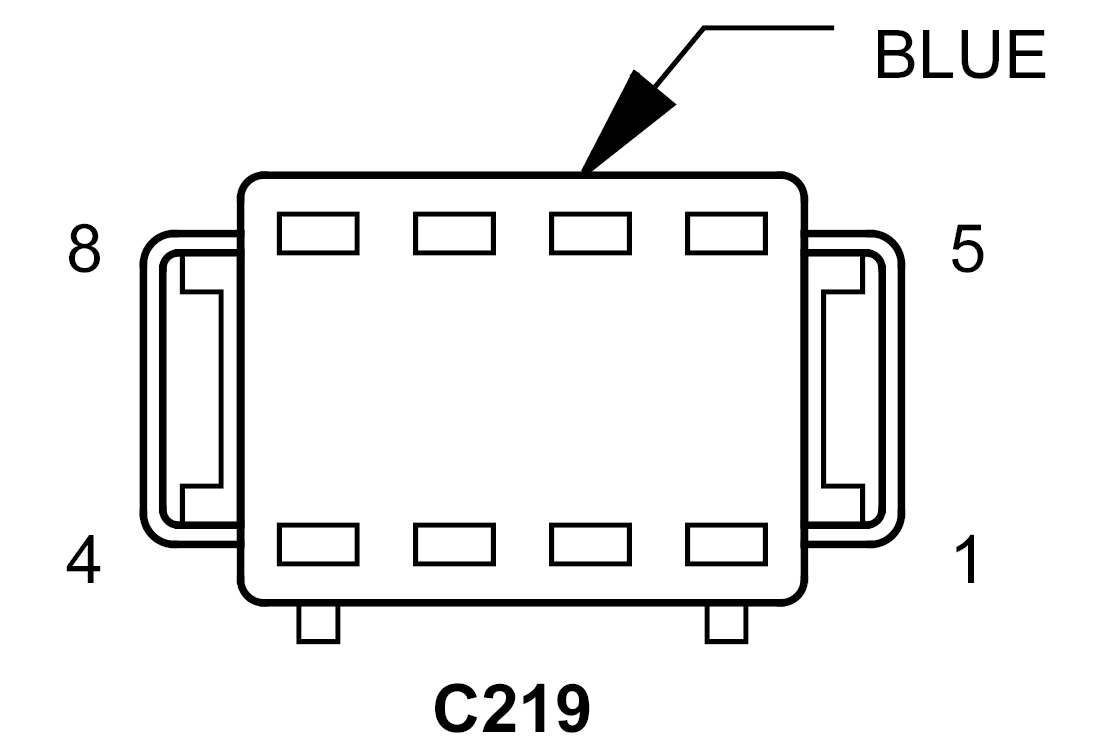

C219 - BLUE 8-WAY FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | 20BK/RD | 5 VOLT SUPPLY (EXCEPT EXPORT) |
| 2 | 20BR/YL | SENSOR GROUND (EXCEPT EXPORT) |
| 2 | 20BR/YL | SENSOR GROUND (EXCEPT EXPORT) |
| 3 | 20DG | FUEL TANK PRESSURE SENSOR SIGNAL (EXCEPT EXPORT) |
| 3 | 18DG/WT | FUSED ILLUMINATION CONTROL MODULE OUTPUT (EXPORT) |
| 4 | 18RD/DG | FUSED ENGINE CONTROL RELAY OUTPUT (EXCEPT EXPORT) |
| 5 | 18BR/BL | CHARCOAL CANISTER SHUTOFF VALVE CONTROL (EXCEPT EXPORT) |
| 6 | 16RD/GY | DRIVER SEAT BELT SWITCH SENSE (EXCEPT EXPORT) |
| 7 | - | - |
| 8 | 20BK/BL | SCI TRANSMIT |

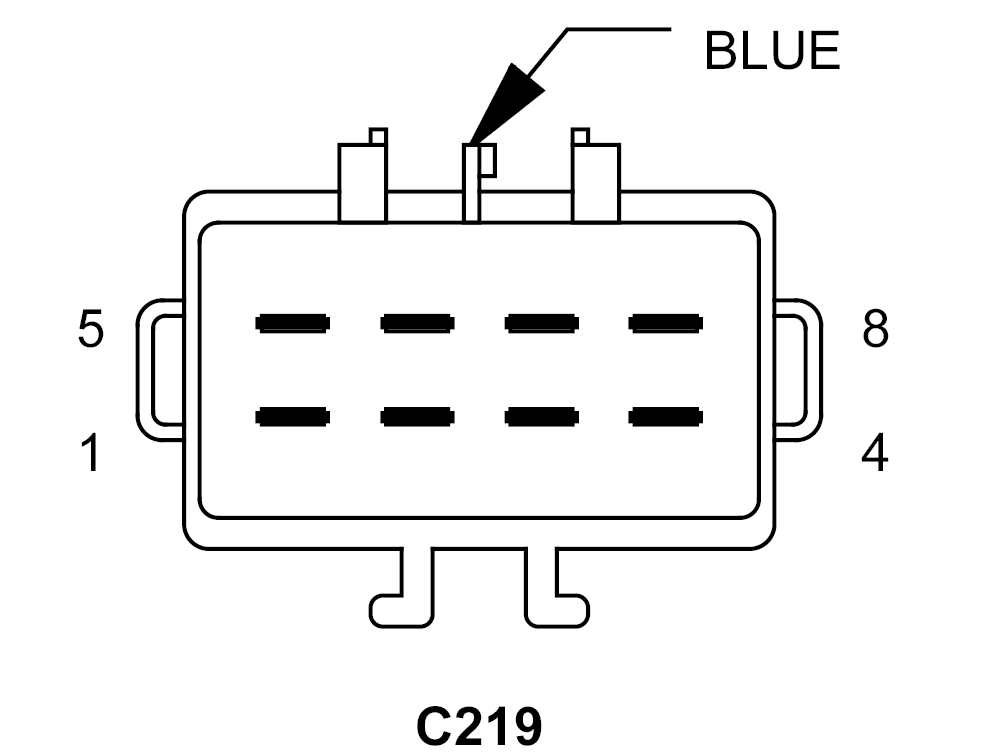

C219 - BLUE 8-WAY MALE
| CAV | CIRCUIT | FUNCTION |
| 1 | 20BK/RD | 5 VOLT SUPPLY (EXCEPT EXPORT) |
| 2 | 20BR/YL | SENSOR GROUND (EXCEPT EXPORT) |
| 3 | 20DG | FUEL TANK PRESSURE SENSOR SIGNAL (EXCEPT EXPORT) |
| 3 | 18DG/WT | FUSED ILLUMINATION CONTROL MODULE OUTPUT (EXPORT) |
| 4 | 18RD/DG | FUSED ENGINE CONTROL RELAY OUTPUT (EXCEPT EXPORT) |
| 5 | 18BR/BL | CHARCOAL CANISTER SHUTOFF VALVE CONTROL (EXCEPT EXPORT) |
| 6 | 16RD/GY | DRIVER SEAT BELT SWITCH SENSE (EXCEPT EXPORT) |
| 7 | - | - |
| 8 | 20BK/BL | SCI TRANSMIT |
