Inline Connector End View (C211 )

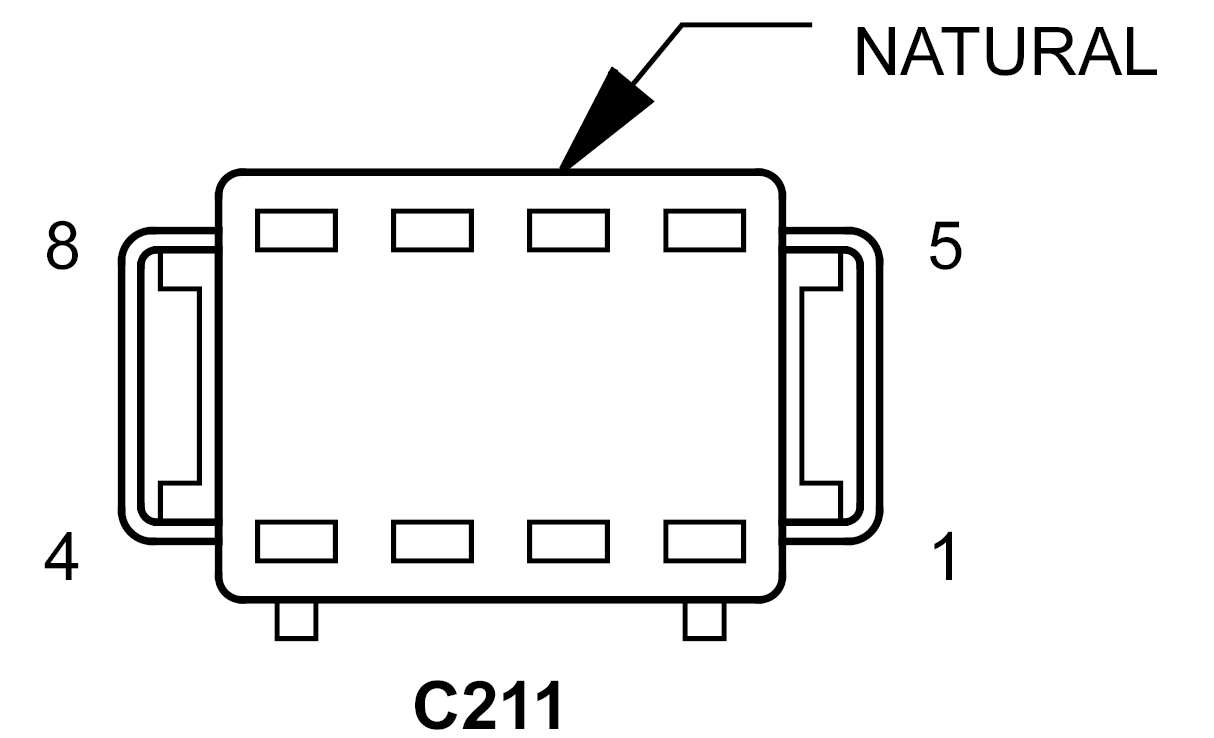

C211 - NATURAL 8-WAY FEMALE

GZH780045Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20DG/WT WHEEL SPEED SENSOR OUTPUT
2 18BR/DG OXYGEN SENSOR 2/2 HEATER CONTROL
3 16RD/WT FUSED B(+)
4 18BR/WT OXYGEN SENSOR 1/2 HEATER CONTROL
5 18BR SENSOR GROUND
6 20YL/BK OXYGEN SENSOR 1/2 SIGNAL
7 20YL/DG OXYGEN SENSOR 2/2 SIGNAL
8 16RD/DG FUSED ENGINE CONTROL RELAY OUTPUT

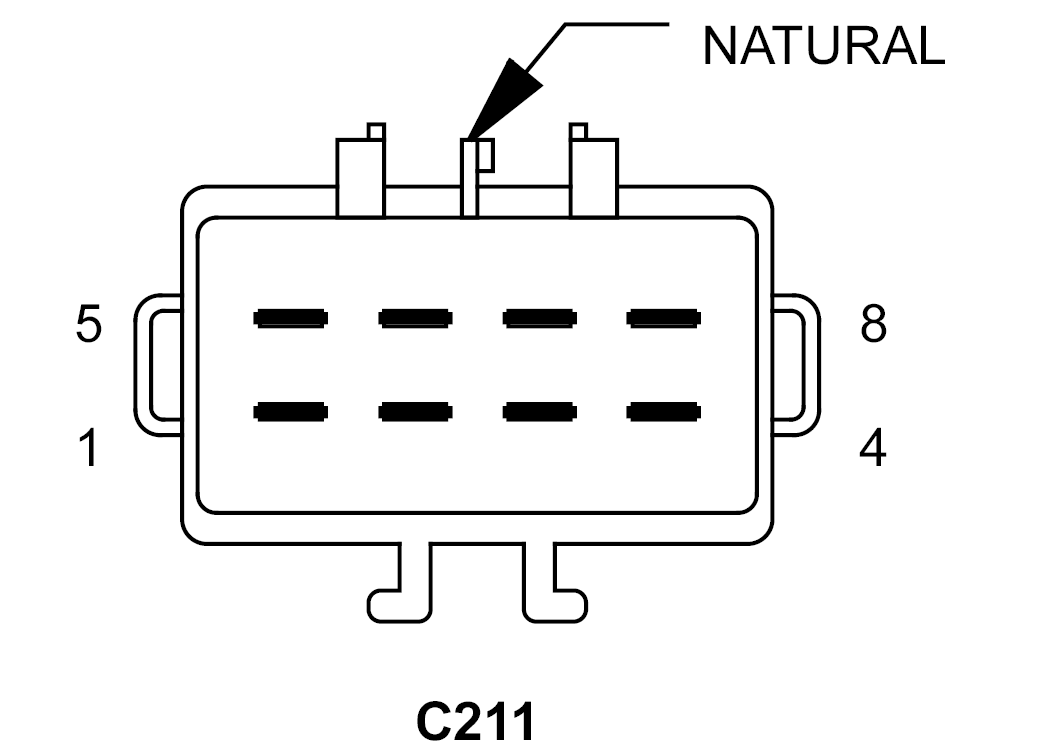

C211 - NATURAL 8-WAY MALE

GZH780044Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20DG/WT WHEEL SPEED SENSOR OUTPUT
2 18BR/DG OXYGEN SENSOR 2/2 HEATER CONTROL
3 14RD/WT FUSED B(+)
4 18BR/WT OXYGEN SENSOR 1/2 HEATER CONTROL
5 20BR SENSOR GROUND
5 20BR SENSOR GROUND
6 20YL/BK OXYGEN SENSOR 1/2 SIGNAL
7 20YL/DG OXYGEN SENSOR 2/2 SIGNAL
8 18RD/DG FUSED ENGINE CONTROL RELAY OUTPUT
8 18RD/DG FUSED ENGINE CONTROL RELAY OUTPUT
