Inline Connector End View (C210 )

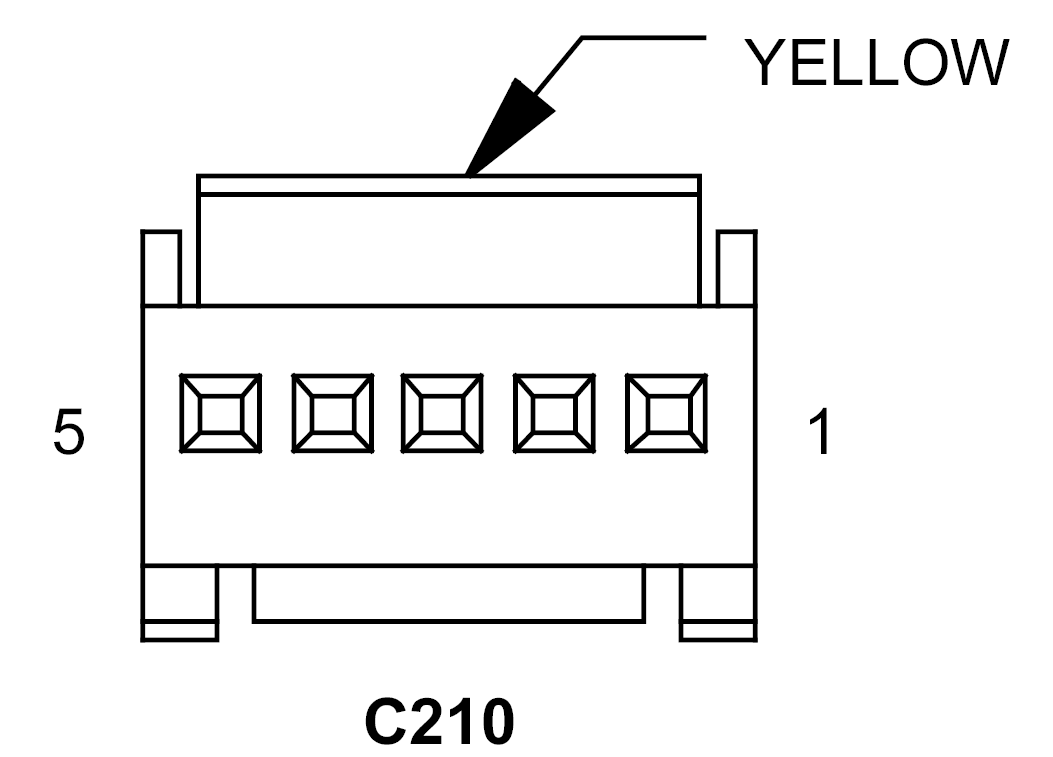

C210 - YELLOW 5-WAY FEMALE

GZH780042Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20BL/DG PASSENGER SQUIB LINE 2
2 20BR/DG PASSENGER SQUIB LINE 1
3 - -
4 20BL/WT PASSENGER KNEE BLOCKER SQUIB LINE 2
5 20BR/WT PASSENGER KNEE BLOCKER SQUIB LINE 1


C210 - 5-WAY MALE

CAV  CIRCUIT  FUNCTION
1 20BL/DG PASSENGER SQUIB LINE 2
2 20BR/DG PASSENGER SQUIB LINE 1
3 - -
4 20BL/WT PASSENGER KNEE BLOCKER SQUIB LINE 2
5 20BR/WT PASSENGER KNEE BLOCKER SQUIB LINE 1
