Inline Connector End View (C208 )

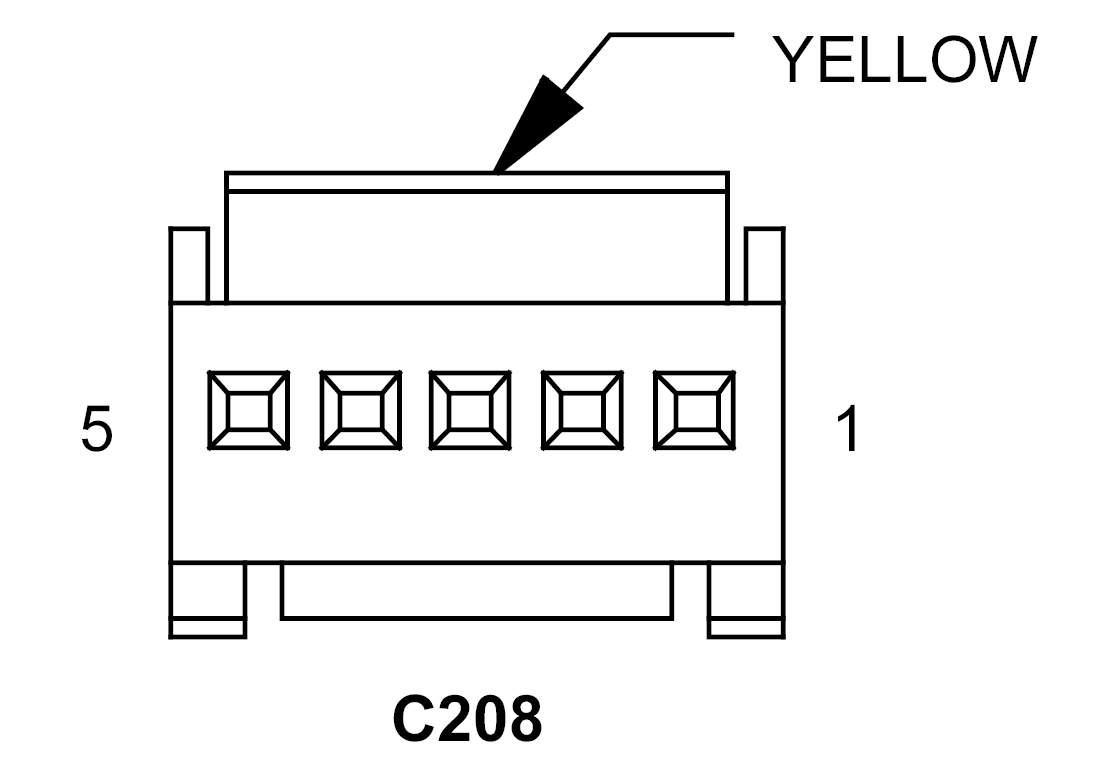

C208 - YELLOW 5-WAY

GZH780266Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20VT DRIVER SQUIB 1 LINE 1
2 20DG DRIVER SQUIB 1 LINE 2
3 - -
4 20BL DRIVER SQUIB 2 LINE 2
5 20BK DRIVER SQUIB 2 LINE 1


C208 - 5-WAY

CAV  CIRCUIT  FUNCTION
1 20VT DRIVER SQUIB 1 LINE 1
2 20DG DRIVER SQUIB 1 LINE 2
3 - -
4 20BL DRIVER SQUIB 2 LINE 2
5 20BK DRIVER SQUIB 2 LINE 1
