Inline Connector End View (C206 )

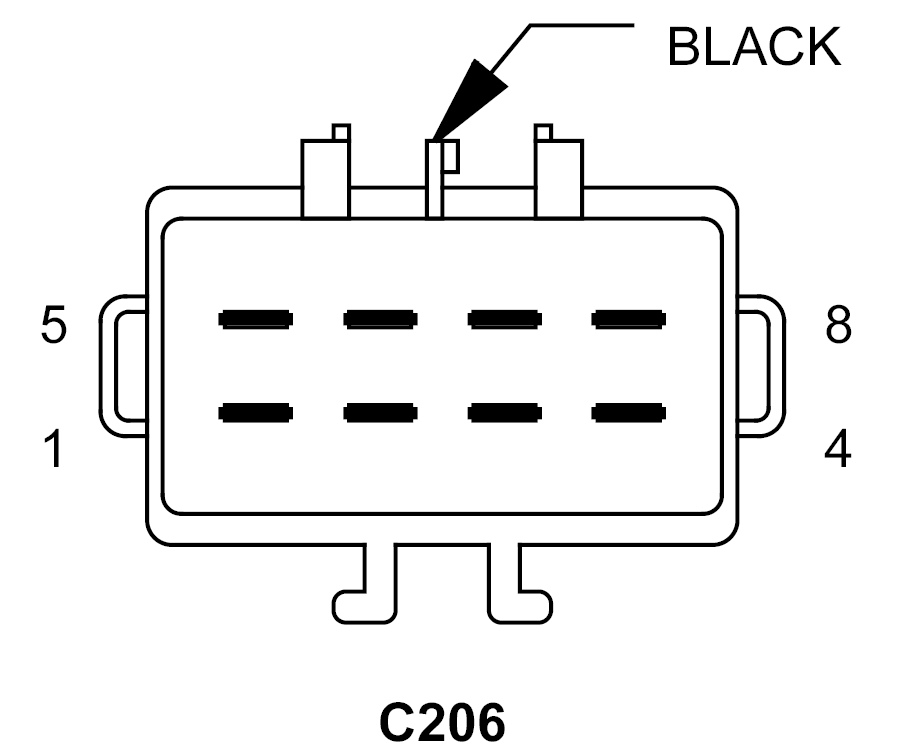

C206 - BLACK 8-WAY FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | 22BK/RD | DOOR LOCK SWITCH SENSE |
| 2 | 20BL | DRIVER CYLINDER LOCK SWITCH SENSE (LOCK) |
| 3 | 20BK | DRIVER CYLINDER LOCK SWITCH SENSE (UNLOCK) |
| 4 | 20BR/GY | GLOVE BOX SWITCH SENSE |
| 5 | 20BK/WT | SCI TRANSMIT |
| 5 | 22BK/WT | SCI TRANSMIT |
| 6 | 18PK/RD/BK | FUSED IGNITION SWITCH OUTPUT |
| 7 | 22RD/YL | SCI TRANSMIT |
| 8 | 20DG | SCI TRANSMIT |

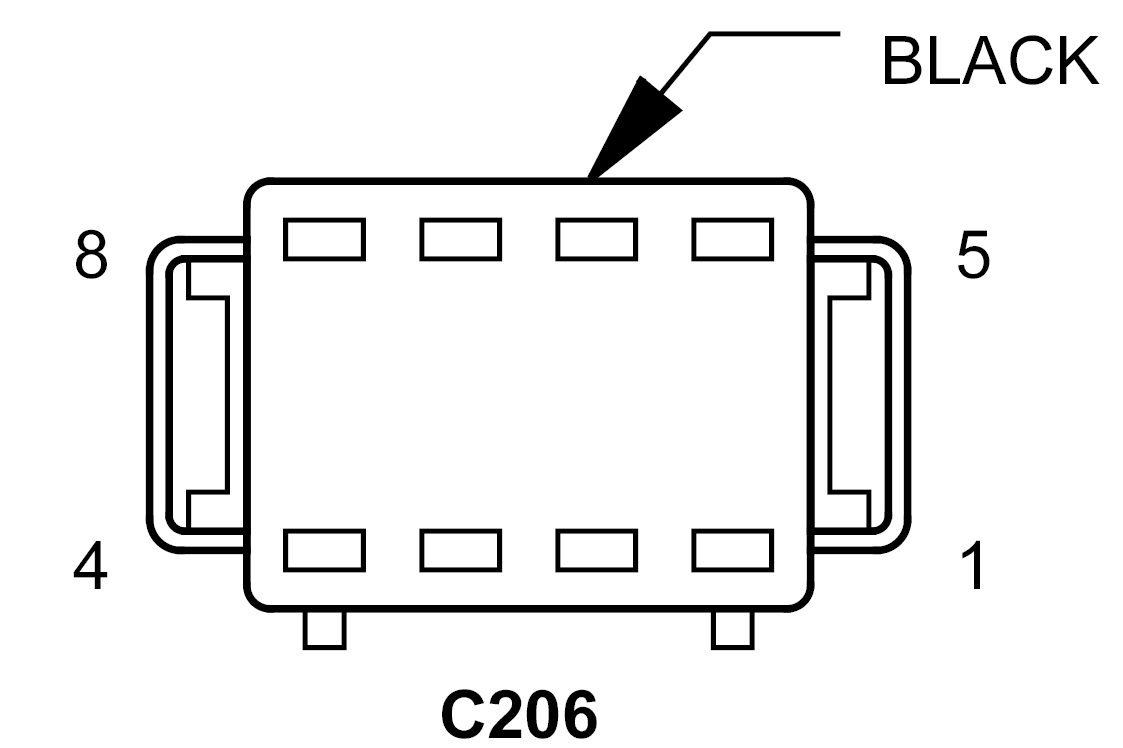

C206 - BLACK 8-WAY MALE
| CAV | CIRCUIT | FUNCTION |
| 1 | 22BK/RD | DOOR LOCK SWITCH SENSE |
| 2 | 20BL | DRIVER CYLINDER LOCK SWITCH SENSE (LOCK) |
| 3 | 20BK | DRIVER CYLINDER LOCK SWITCH SENSE (UNLOCK) |
| 4 | 20BR/GY | GLOVE BOX SWITCH SENSE |
| 5 | 20BK/WT | SCI TRANSMIT |
| 6 | 18PK/RD/BK | FUSED IGNITION SWITCH OUTPUT |
| 7 | 22RD/YL | SCI TRANSMIT (A/T) |
| 8 | 20DG | SCI TRANSMIT (A/T) |
| 8 | 22DG | SCI TRANSMIT (A/T) |
