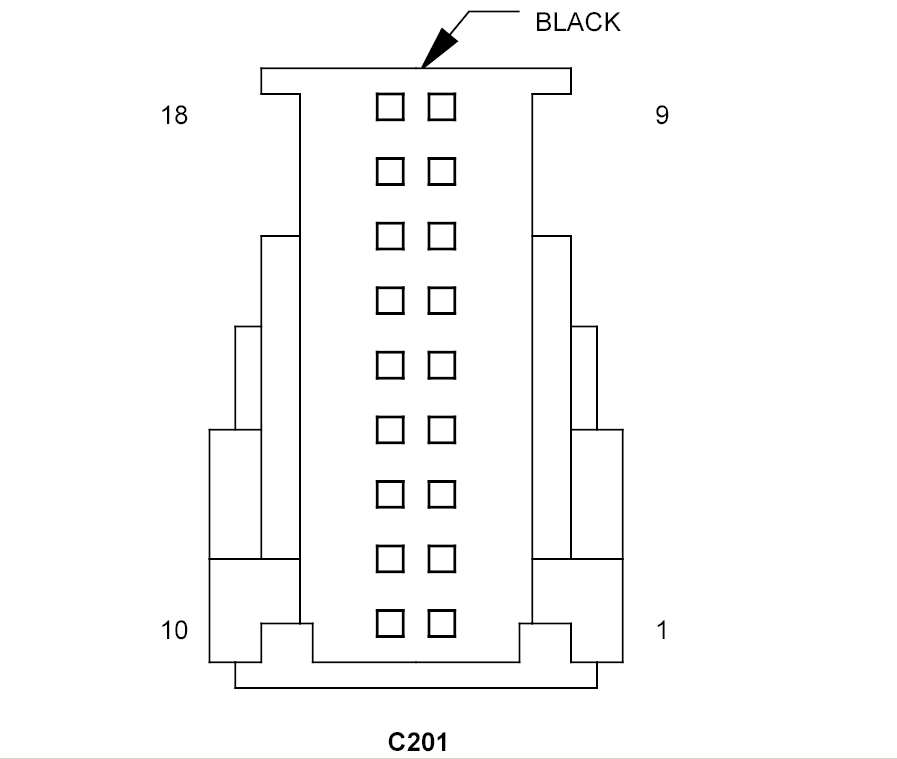

Inline Connector End View (C201 )
C201 - BLACK 18-WAY FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | 20DG | S-CAN (-) |
| 2 | 20WT | S-CAN (+) |
| 3 | 20RD/DG | 5 VOLT SUPPLY |
| 4 | 20BR | SENSOR GROUND |
| 5 | 20BL/YL | STEERING ANGLE SENSOR SIGNAL |
| 6 | 20BK/DG | ESP OFF SIGNAL |
| 7 | 20GY/YL | BACKUP LAMP SWITCH OUTPUT (M/T) |
| 8 | 20BL | LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY |
| 9 | 20BR | LEFT REAR WHEEL SPEED SENSOR SIGNAL |
| 10 | 20YL | RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY |
| 11 | 20BR | RIGHT REAR WHEEL SPEED SENSOR SIGNAL |
| 12 | 20BK/BL | ESP OFF SWITCH SENSE |
| 13 | 20DG/VT | PARK BRAKE SWITCH SENSE |
| 14 | 20BL/DG | WHEEL SPEED SENSOR OUTPUT |
| 15 | 20DG/VT | PARK BRAKE SWITCH SENSE |
| 16 | 20BK/YL | BRAKE LAMP RELAY CONTROL |
| 17 | - | - |
| 18 | 20DG/BK | ENHANCED ACCIDENT REPORT DRIVER |

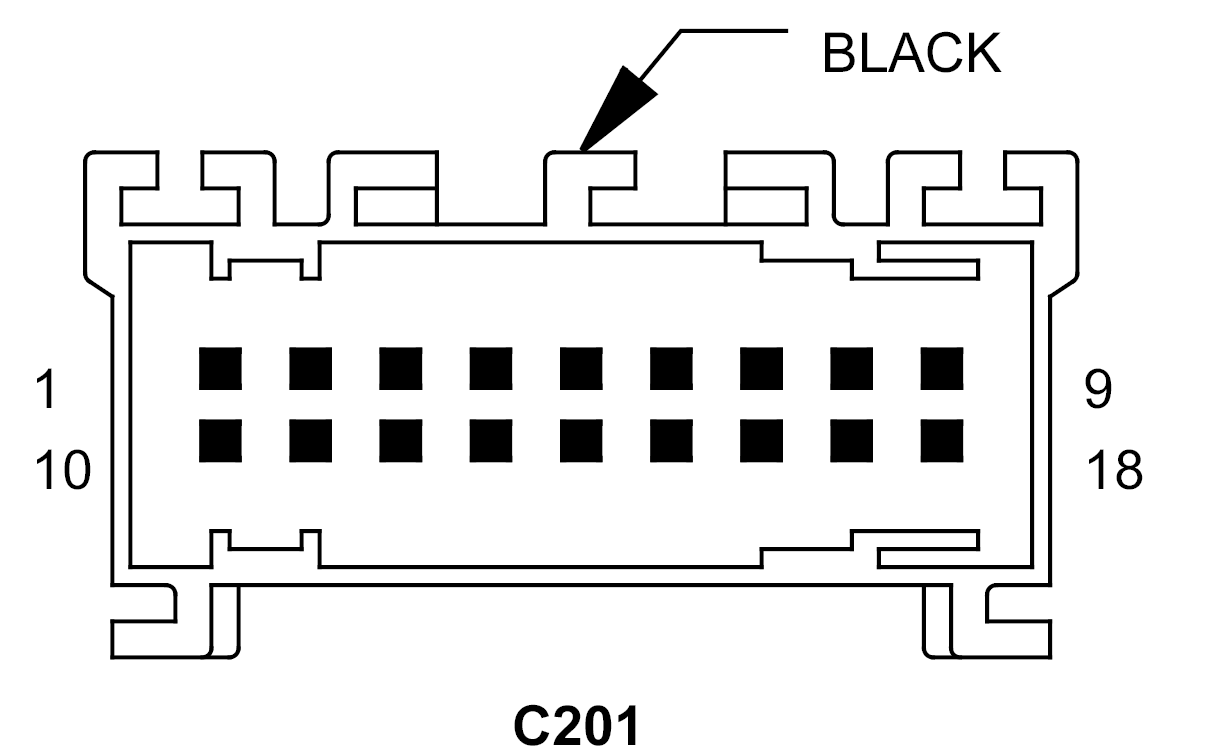

C201 - BLACK 18-WAY MALE
| CAV | CIRCUIT | FUNCTION |
| 1 | 20DG | S-CAN (-) |
| 2 | 20WT | S-CAN (+) |
| 3 | 20RD/DG | 5 VOLT SUPPLY |
| 4 | 20BR | SENSOR GROUND |
| 5 | 20BL/YL | STEERING ANGLE SENSOR SIGNAL |
| 6 | 20BK/DG | ESP OFF SIGNAL |
| 7 | 20GY/YL | BACKUP LAMP SWITCH OUTPUT (M/T) |
| 8 | 20BL | LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY |
| 9 | 20BR | LEFT REAR WHEEL SPEED SENSOR SIGNAL |
| 10 | 20YL | RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY |
| 11 | 20BR | RIGHT REAR WHEEL SPEED SENSOR SIGNAL |
| 12 | 20BK/BL | ESP OFF SWITCH SENSE |
| 13 | 20DG/VT | PARK BRAKE SWITCH SENSE |
| 14 | 20BL/DG | WHEEL SPEED SENSOR OUTPUT |
| 15 | 20DG/VT | PARK BRAKE SWITCH SENSE |
| 16 | 20BK/YL | BRAKE LAMP RELAY CONTROL |
| 17 | - | - |
| 18 | 20DG/BK | ENHANCED ACCIDENT REPORT DRIVER |
