Inline Connector End View (C200 )

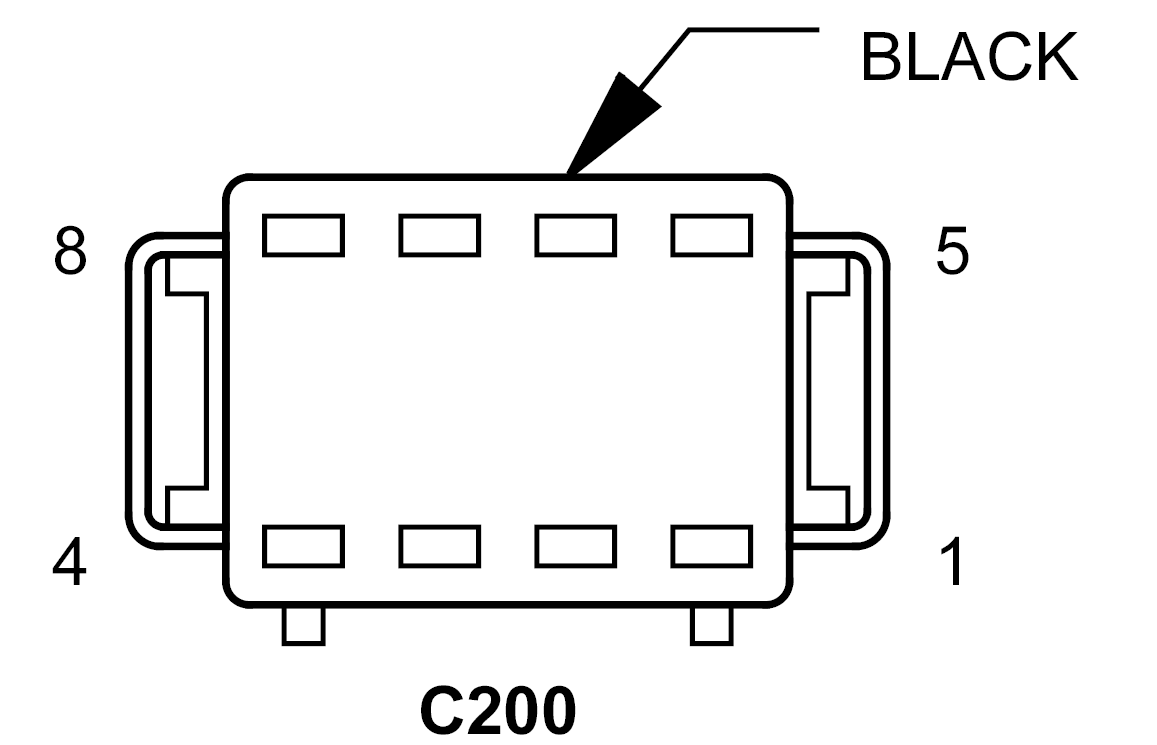

C200 - BLACK 8-WAY FEMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18BK/DG	RIGHT TURN SIGNAL OUTPUT
1	18BK/DG	RIGHT TURN SIGNAL OUTPUT (EUROPE)
2	16VT	FUSED IGNITION SWITCH OUTPUT
2	20VT	FUSED IGNITION SWITCH OUTPUT
3	18BK/WT	LEFT TURN SIGNAL OUTPUT
3	18BK/WT	LEFT TURN SIGNAL OUTPUT (EUROPE)
4	22BK/BL	SCI TRANSMIT
4	20BK/BL	SCI TRANSMIT (EXCEPT EXPORT)
5	18RD/DG	FUSED B(+)
6	20RD/YL	SCI TRANSMIT
7	-	-
8	-	-

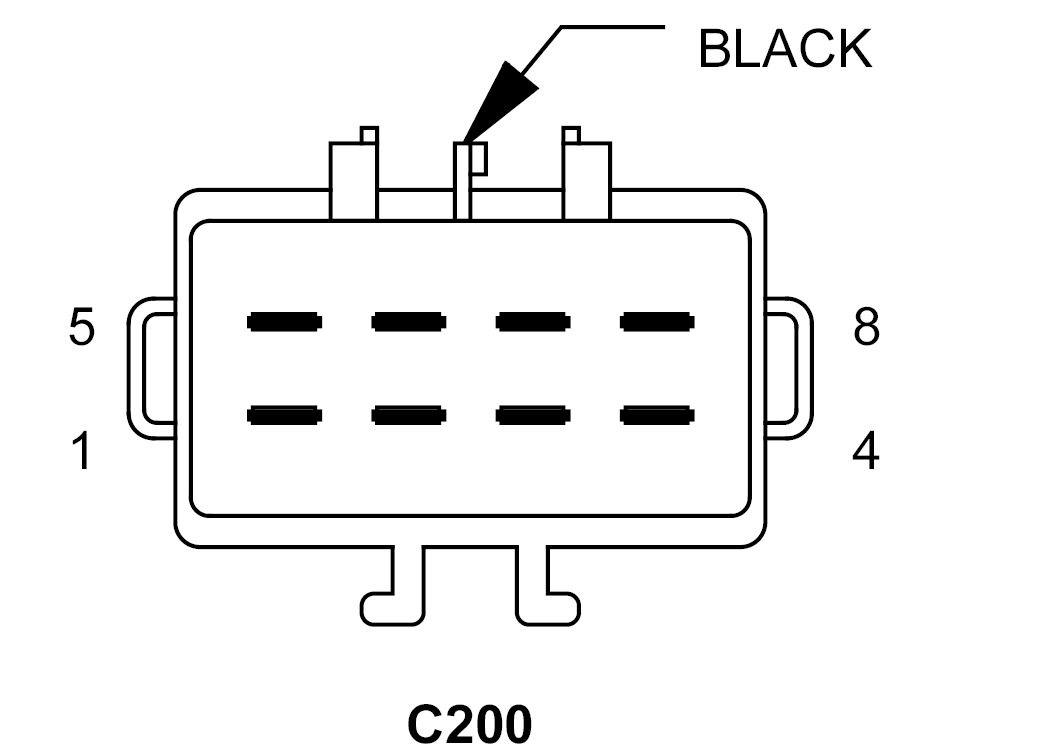

C200 - BLACK 8-WAY MALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18BK/DG	RIGHT TURN SIGNAL OUTPUT
2	16VT	FUSED IGNITION SWITCH OUTPUT
3	18BK/WT	LEFT TURN SIGNAL OUTPUT
4	22BK/BL	SCI TRANSMIT
4	22BK/BL	SCI TRANSMIT
5	18RD/DG	FUSED B(+)
5	18RD/DG	FUSED B(+)
6	22RD/YL	SCI TRANSMIT
6	22RD/YL	SCI TRANSMIT
7	-	-
8	-	-
