Inline Connector End View (C106 )

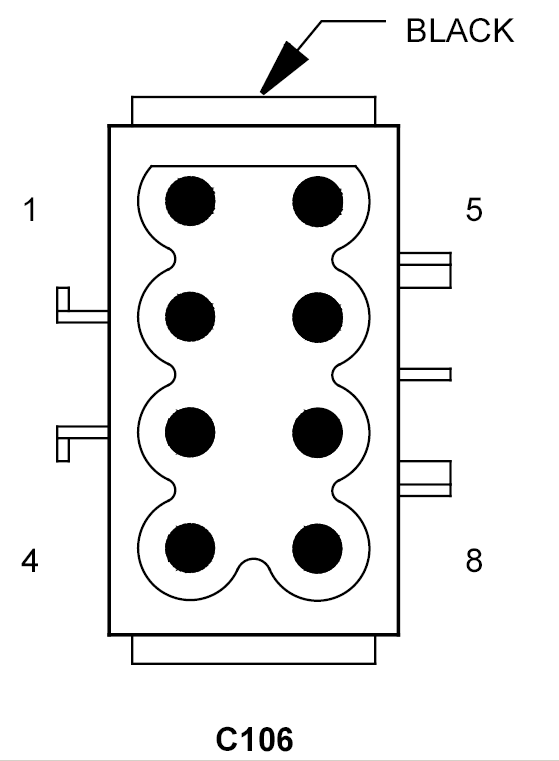

C106 - BLACK 8-WAY FEMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	20BR/VT	AIR PUMP RELAY CONTROL
2	-	-
3	18BL/DG	A/C COMPRESSOR CLUTCH CONTROL
4	16BK/YL	FUSED IGNITION SWITCH OUTPUT
5	18BL	LOW BATTERY INDICATOR OUTPUT
6	14VT	STARTER SOLENOID OUTPUT
7	-	-
8	-	-

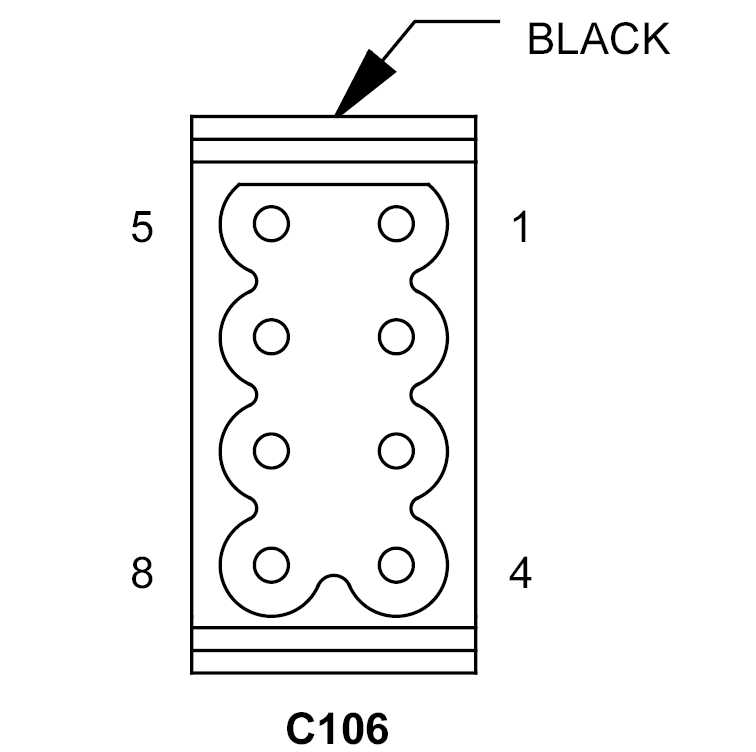

C106 - BLACK 8-WAY MALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	20BR/VT	AIR PUMP RELAY CONTROL
2	-	-
3	18BL/DG	A/C COMPRESSOR CLUTCH CONTROL
4	16BK/YL	FUSED IGNITION SWITCH OUTPUT
5	20BL	LOW BATTERY INDICATOR OUTPUT
6	14VT/WT	STARTER SOLENOID OUTPUT
7	-	-
8	-	-
