Crossfire 2D Convertible, Standard
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
Connector End Views
>>
Connector Pin-Outs
>>

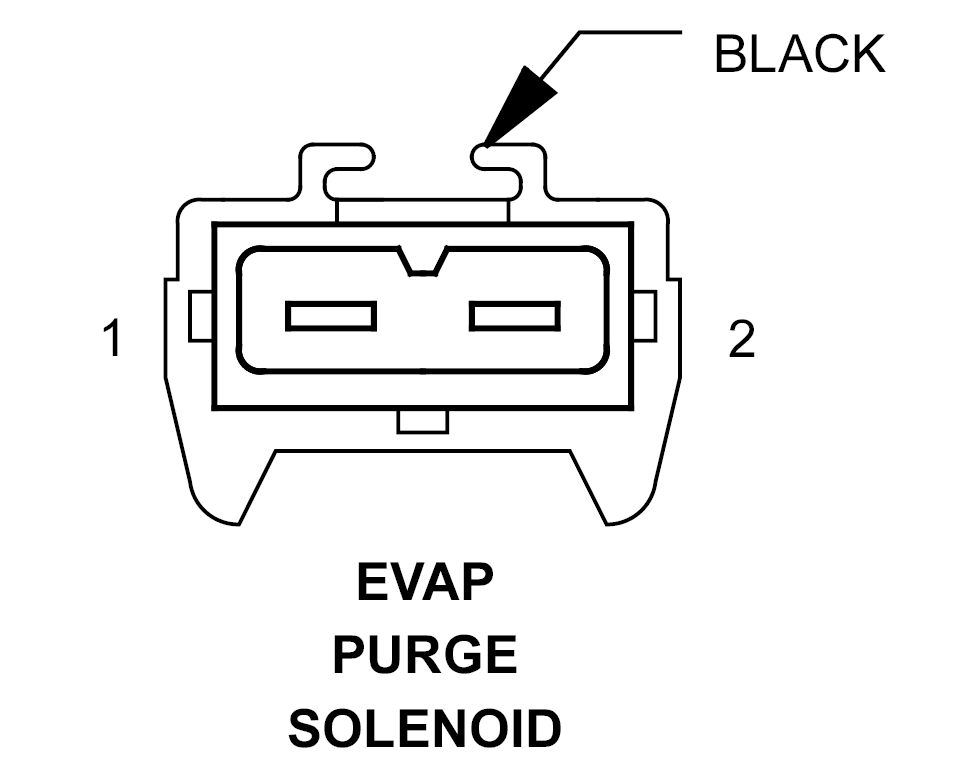

EVAP Purge Solenoid Connector End View
EVAP Purge Solenoid Connector End View
EVAP PURGE SOLENOID - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
18RD/DG
FUSED ENGINE CONTROL RELAY OUTPUT
2
18BR/RD
EVAP PURGE SOLENOID CONTROL
Courtesy of CHRYSLER CORP.
