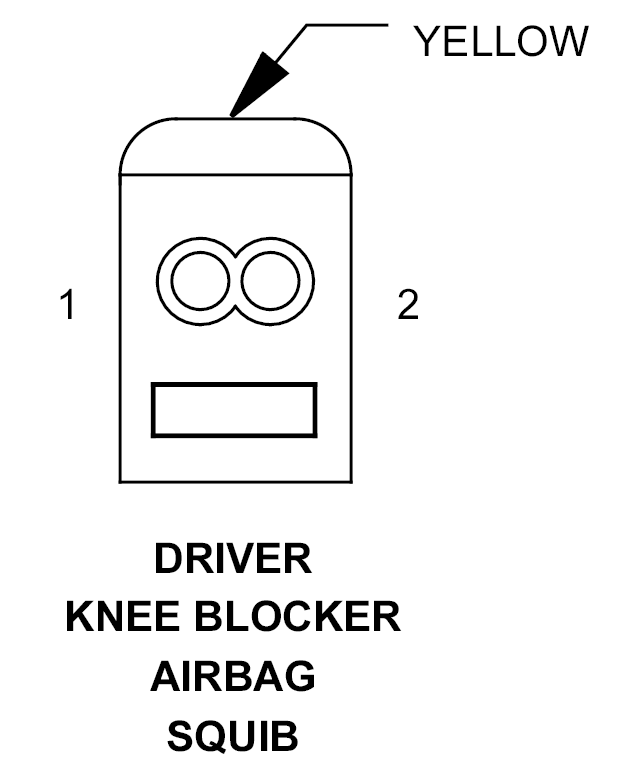

Driver Knee Blocker Airbag Squib Connector End View

DRIVER KNEE BLOCKER AIRBAG SQUIB - YELLOW 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	20YL/DG	DRIVER KNEE BLOCKER SQUIB LINE 2
2	20VT/BR	DRIVER KNEE BLOCKER SQUIB LINE 1
