Center High Mounted Stop Lamp Connector End View
Center High Mounted Stop Lamp Connector End View

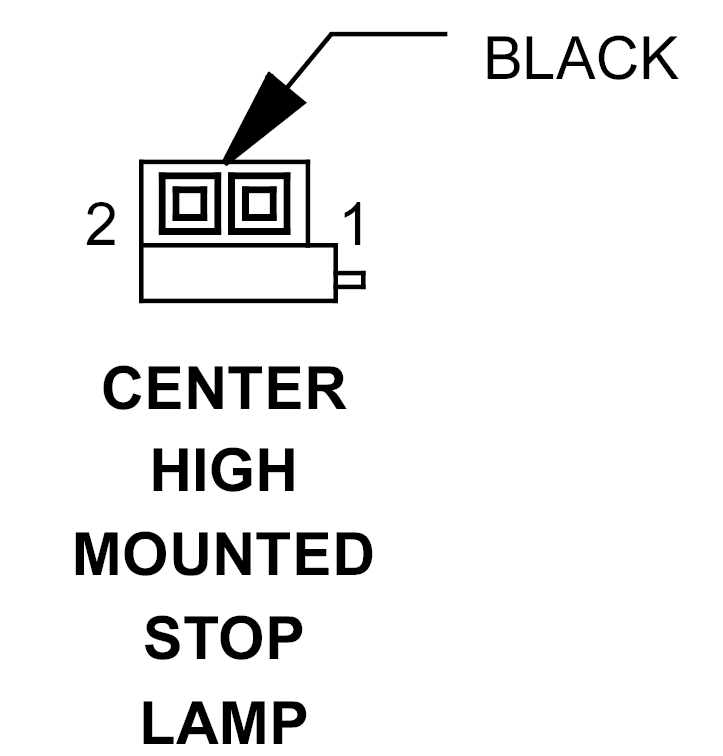

CENTER HIGH MOUNTED STOP LAMP - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
20BR
GROUND
2
20BK/BL
BRAKE LAMP RELAY OUTPUT
