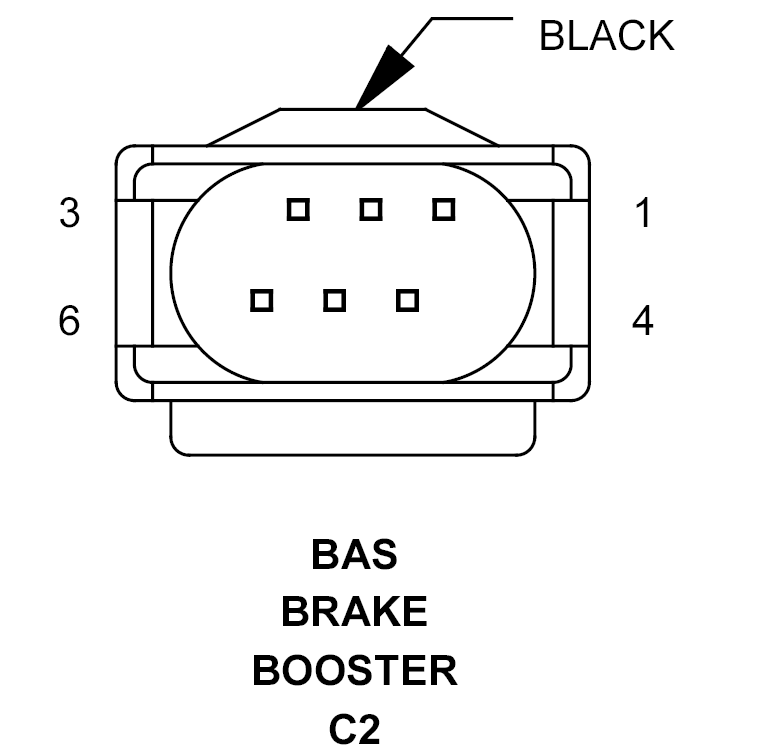

Base Brake Booster Connector End View (C2)
BAS BRAKE BOOSTER C2 - BLACK 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20GY |
BAS RELEASE SWITCH SENSOR (RELEASED) |
| 2 |
20PK |
12 VOLT SUPPLY |
| 3 |
18YL/VT |
BAS RELEASE SWITCH SENSOR (APPLIED) |
| 4 |
18DG/BL |
5 VOLT SUPPLY |
| 5 |
20BK/VT |
BAS CONTROL |
| 6 |
- |
- |
