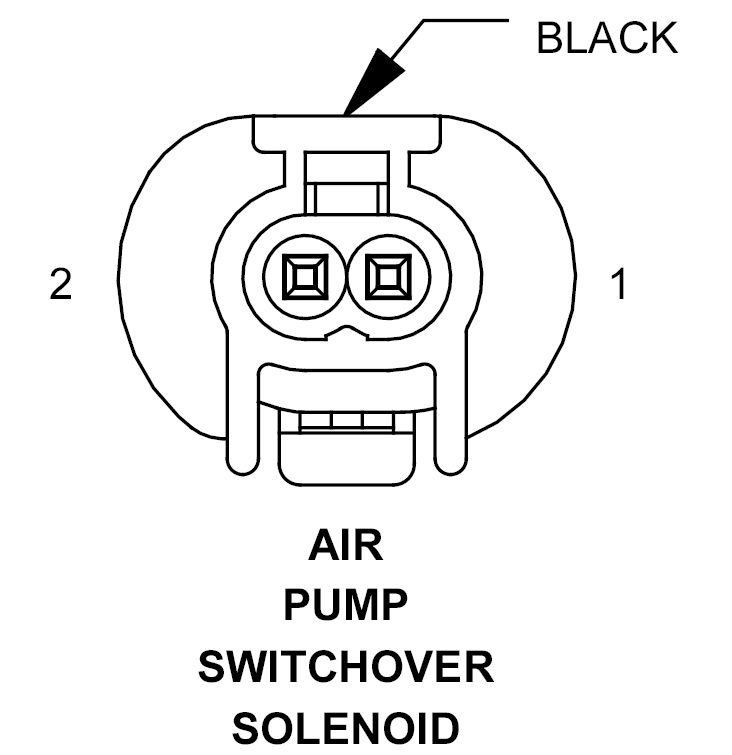

Air Pump Switchover Solenoid Connector End View
Air Pump Switchover Solenoid Connector End View
AIR PUMP SWITCHOVER SOLENOID - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
20GY/BR
AIR PUMP SWITCHOVER SOLENOID CONTROL
2
20RD/DG
FUSED ENGINE CONTROL RELAY OUTPUT
Courtesy of CHRYSLER CORP.
