Upper Control Arm

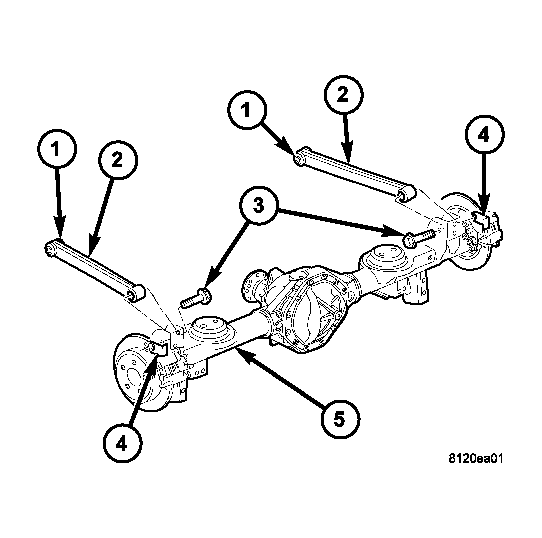

Fig 1: Upper Control Arm Bolt
GC0011146Courtesy of CHRYSLER LLC
  1. Install the upper control arm (2) to the vehicle.
  2. Install the upper control arm bolt and flag nut (1) at the frame.
  3. Install the upper control arm bolt (3) and flag nut (4) at the axle (5).
  4. Lower the vehicle to the ground and then tighten the bolts to 156 N.m (115 ft.lbs.).
