Lower Control Arm

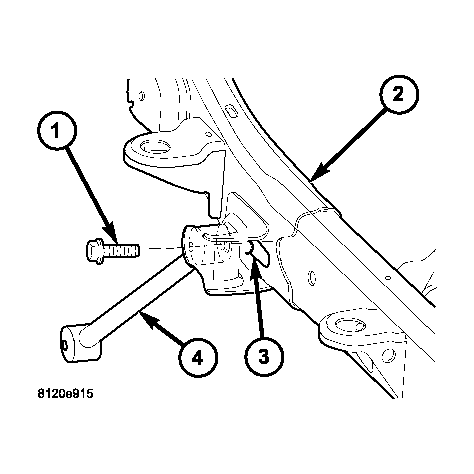

Fig 1: Lower Control Arm Bolt At Frame
GC0011145Courtesy of CHRYSLER LLC
  1. Install the lower control arm (4) to the vehicle.
  2. Install the lower control arm bolt (1) and flag nut (3) at the frame (2).

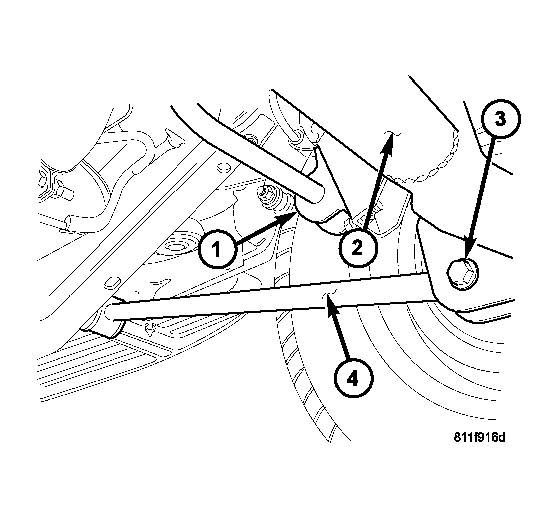

    Fig 2: Lower Control Arm Bolt At Axle
    GC0011144Courtesy of CHRYSLER LLC
  3. Install the lower control arm bolt (3) and flag nut at the axle (2).
  4. Lower the vehicle to the ground and then tighten the bolts to 244 N.m (180 ft.lbs.).
