Stabilizer Link

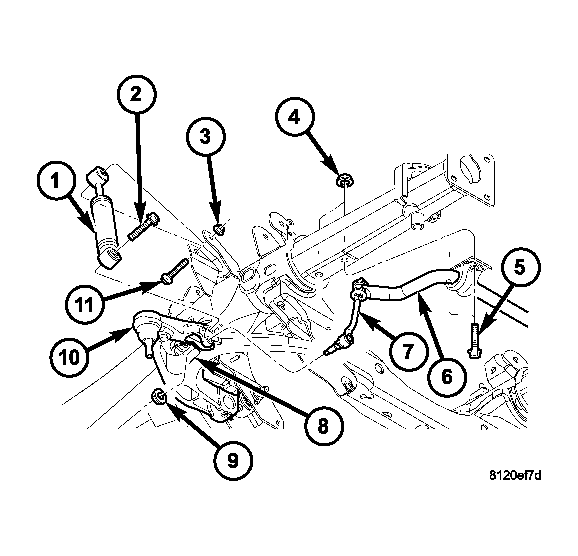

Fig 1: Front Suspension Components
GC0011132Courtesy of CHRYSLER LLC
  1. Install the stabilizer link (7) to the vehicle.
  2. Install the retainers, grommets and upper nut to the stabilizer bar (6) and Tighten to 54 N.m (40 ft. lbs.).
  3. Install the lower nut and Tighten to 169 N.m (125 ft. lbs.).
  4. Remove the support and lower the vehicle.
