Lower Control Arm Bushings: Notes

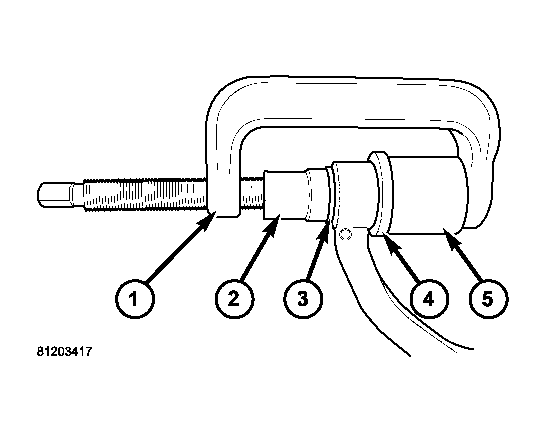

Fig 1: Bushing Tools
GC0011116Courtesy of CHRYSLER LLC
  1. Remove the lower control arm. See REMOVAL .
  2. Secure the control arm in a vise.
NOTE: Extreme pressure lubrication must be used on the threaded portions of the tool. This will increase the longevity of the tool and insure proper operation during the removal and installation process.
