Generator - 2.7L

Fig 1: ALTERNATOR ELECTRICAL CONNECTION
GC0070069Courtesy of CHRYSLER LLC
WARNING: DISCONNECT NEGATIVE CABLE FROM BATTERY BEFORE REMOVING BATTERY OUTPUT WIRE (B+ WIRE) FROM GENERATOR. FAILURE TO DO SO CAN RESULT IN INJURY OR DAMAGE TO ELECTRICAL SYSTEM.
  1. Disconnect and isolate negative battery cable at battery.
  2. Remove generator drive belt, refer to REMOVAL .
  3. Unsnap plastic protective cover (3) from B+ mounting stud.
  4. Remove B+ terminal mounting nut (2) and B+ terminal (1) at rear of generator.
  5. Disconnect field wire electrical connector (4) by pushing on connector tab.

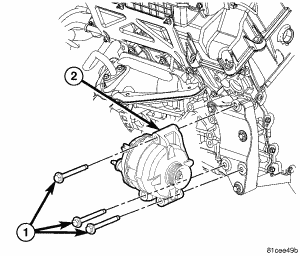

    Fig 2: GENERATOR 2.7L
    GC0070070Courtesy of CHRYSLER LLC
  6. Remove mounting bolts (1) from generator (2).
  7. Remove generator (2) from engine compartment.
