Air Bag, Knee Blocker: Installation

  1. Place the knee blocker airbag into position in the instrument panel opening. See Figure.
  2. Connect the one electrical connector. See Figure.
  3. Install the five knee blocker airbag retaining bolts. See Figure.

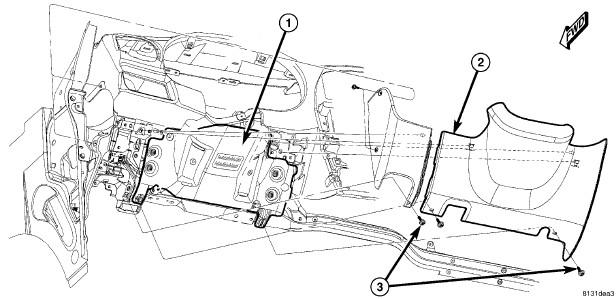

  4. Position the steering column opening cover over retaining slots and firmly snap into place. See Figure. Refer to INSTRUMENT PANEL .

    Do not connect the battery negative cable. See STANDARD PROCEDURE . Personal injury or death may result if the system test is not performed first.

  5. Verify vehicle and system operation.
  6. Close hood.
