Component Locations: Sensors: 2.4L

Fig 1: Locating CKP Sensor
G04536271Courtesy of CHRYSLER

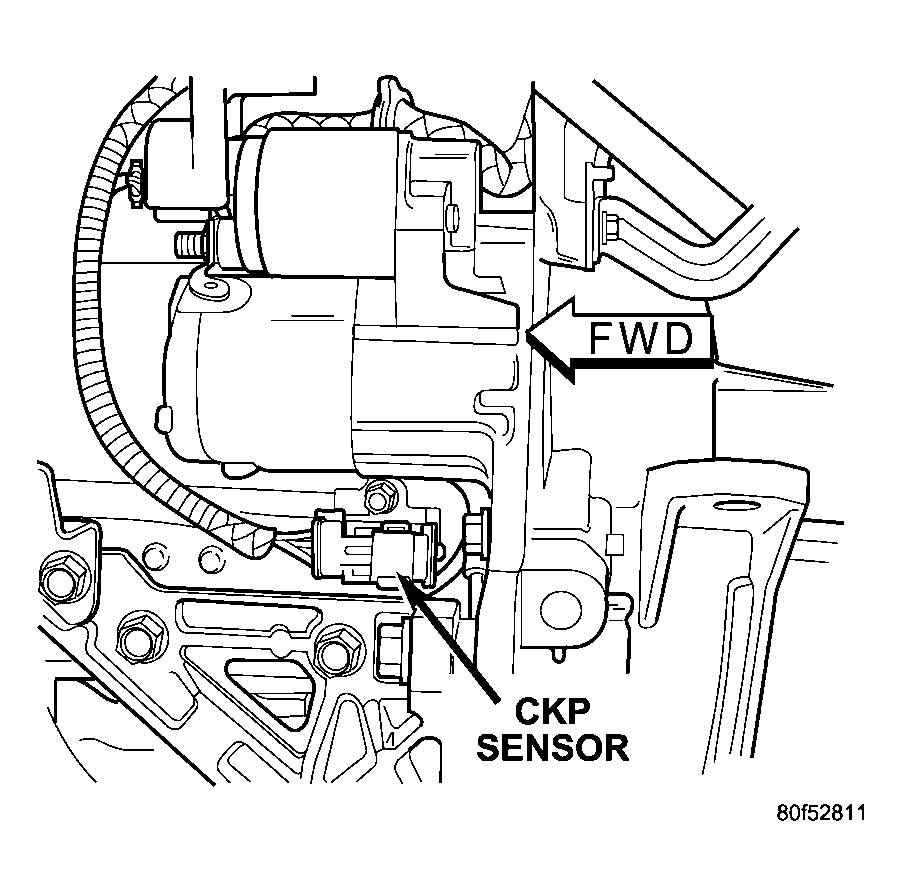

Fig 1: Locating Crankshaft Position Sensor And Transmission
G04536273Courtesy of CHRYSLER


Fig 1: Locating ECT Sensor And Thermostat Housing
G04763096Courtesy of CHRYSLER

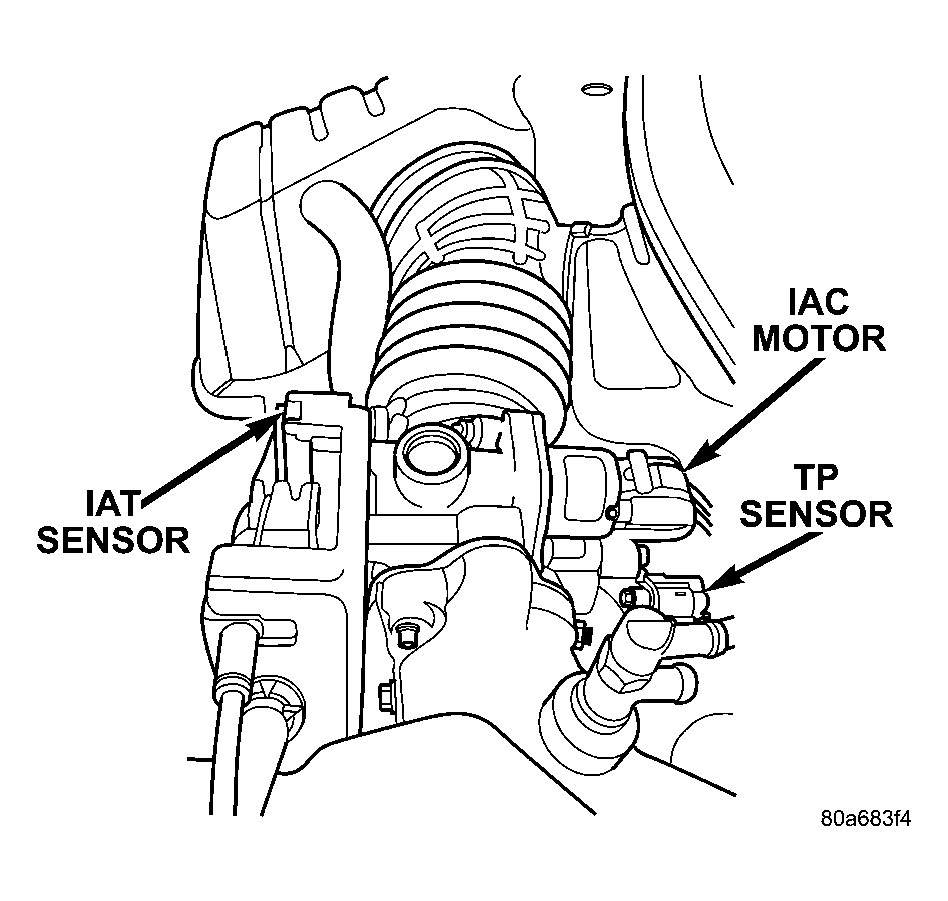

Fig 1: Identifying IAT Sensor, IAC Motor And TP Sensor
G04549201Courtesy of CHRYSLER

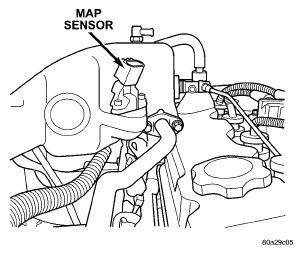

Fig 1: Locating MAP Sensor
G04763099Courtesy of CHRYSLER


Fig 1: Locating O2 Sensor
G04536281Courtesy of CHRYSLER


Fig 1: Identifying IAT Sensor, IAC Motor And TP Sensor
G04549201Courtesy of CHRYSLER
Fig 2: Locating IAT Sensor And IAC Motor
G04763103Courtesy of CHRYSLER
